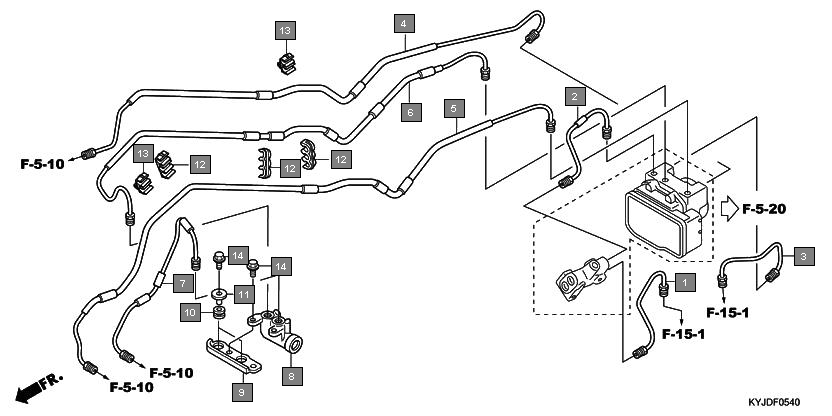

Motorcycles CBR250R CBR250RAD Frame Brake pipe
Ref.No. Part No. Description Oty
1 43311KYJ910 PIPE COMP. A, RR. BRAKE 1
2 43312KYJ910 PIPE COMP. B, RR. BRAKE 1
3 43313KYJ910 PIPE COMP. C, RR. BRAKE 1
4 45131KYJ910 PIPE COMP. A, FR. BRAKE 1
5 45132KYJ910 PIPE COMP. B, FR. BRAKE 1
6 45133KYJ910 PIPE COMP. C, FR. BRAKE 1
7 45134KYJ910 PIPE COMP. D, FR. BRAKE 1
8 46300MFGD21 VALVE ASSY., DELAY 1
9 50243KYJ910 BRACKET, DELAY VALVE 1
10 50247KYJ910 RUBBER, DELAY VALVE MOUNT 2
11 61105KPF910 COLLAR, FR. FENDER MOUNTING 2
12 90662MCA971 CLAMP, BRAKE PIPE(6.8X3) 3
13 90664MCA003 CLAMP, BRAKE PIPE(7.0X2) 2
14 957010601608 BOLT, FLANGE, 6X16 4
15 957020601608 BOLT, FLANGE, 6X16 4
