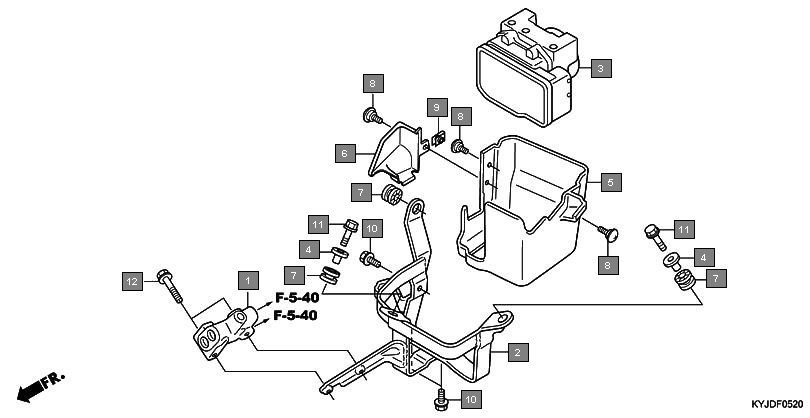

Motorcycles CBR250R CBR250RAD Frame Abs modulator
Ref.No. Part No. Description Oty
1 46400KYJ911 VALVE ASSY., PROPORTIONING CONTROL 1
2 50245KYJ910 STAY COMP., ABS MODULATOR 1
3 57110KYJ791 MODULATOR ASSY., ABS 1
4 61102KTYD30 COLLAR, RADIATOR MOUNTING 2
5 61410KYJ910 COVER A, ABS MODULATOR 1
6 61411KYJ910 COVER B, ABS MODULATOR 1
7 77208KW7900 RUBBER B, SEAT MOUNTING 3
8 90115KW7900 SCREW, VISOR SPECIAL SETTING 3
9 90677KANT00 NUT, CLIP, 5MM 1
10 957010601200 BOLT, FLANGE, 6X12 3
11 957010602200 BOLT, FLANGE, 6X22 2
12 957010604007 BOLT, FLANGE, 6X40 2
