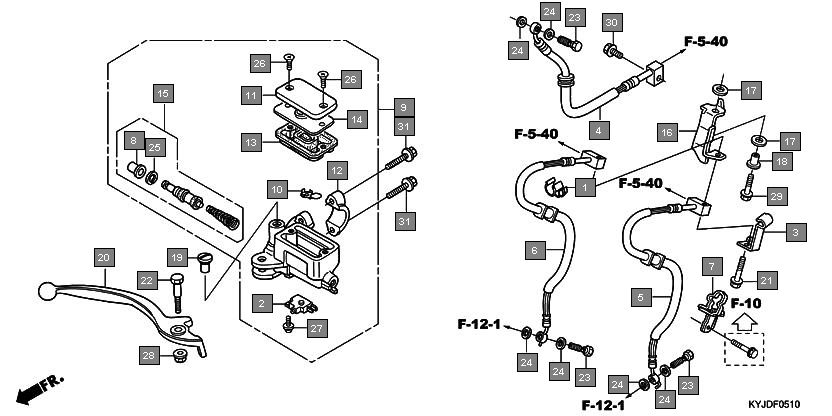

Motorcycles CBR250R CBR250RAD Frame Front brake master cylinder(cbr250ra)
Ref.No. Part No. Description Oty
1 11152KS4003 CLAMP, PIPE 1
2 35340MM5600 SWITCH ASSY., FR. STOP 1
3 38526KYJ910 CLAMPER, SPEED SENSOR CORD FR. 1
4 45125KYJ911 HOSE COMP. B, FR. BRAKE 1
5 45126KYJ911 HOSE COMP. A, FR. BRAKE 1
6 45127KYJ911 HOSE COMP. C, FR. BRAKE 1
7 45156KYJ610 CLAMPER B, FR. BRAKE HOSE 1
8 45504410003 BOOT COMP. 1
9 45510KYJS01 CYLINDER SUB ASSY., FR. BRAKE MASTER 1
10 45512MA6006 PROTECTOR 1
11 45513HA2006 CAP, MASTER CYLINDER 1
12 45517166006 HOLDER, MASTER CYLINDER 1
13 45520GE2006 DIAPHRAGM 1
14 45521K21901 PLATE, DIAPHRAGM 1
15 45530471831 CYLINDER SET, MASTER 1
16 50246KYJ910 STAY, FR. BRAKE HOSE 1
17 50248KYJ910 WASHER, RUBBER 2
18 50249KYJ710 COLLAR 2WAY JOINT STAY MOUNTING 1
19 53175KPPT01 LEVER, R. STEERING HANDLE 1
20 90114166006 BOLT, HANDLE LEVER PIVOT 1
21 90145MS9612 BOLT, OIL, 10X22 3
22 90545300000 WASHER, OIL BOLT 6
23 90651MA5671 CIRCLIP 1
24 93600040121G SCREW, FLAT, 4X12 2
25 957010602007 BOLT, FLANGE, 6X20 1
26 9405006000 NUT, FLANGE, 6MM 1
27 960010602207 BOLT, FLANGE, 6X22 2
28 960010601207 BOLT, FLANGE, 6X12 1
