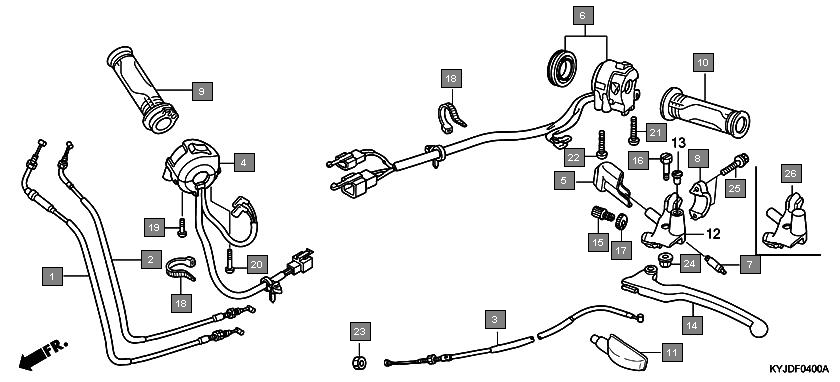

Motorcycles CBR250R CBR250RAD Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 17910KYJ901 CABLE COMP. A, THROTTLE 1
2 17920KYJ901 CABLE COMP. B, THROTTLE 1
3 22870KYJ900 CABLE COMP., CLUTCH 1
4 35150KYJ972 SWITCH ASSY., STARTER LIGHTING KILL 1
5 35150KYJ711 SWITCH ASSY., STARTER LIGHTING KILL (MINDA) 1
6 35152KRY970 COVER, CLUTCH SWITCH 1
7 35200KYJT01 SWITCH ASSY., WINKER 1
8 35330KYJ901 SWITCH COMP., FR. LEVER 1
9 35330KYJ611 SWITCH ASSY., CLUTCH 1
10 45517KCW870 HOLDER, MASTER CYLINDER 1
11 53140KYJ900 GRIP COMP., THROTTLE 1
12 53166KYJ900 GRIP, L. HANDLE 1
13 53172402700 COVER, L. HANDLE LEVER 1
14 53178KYJ710 LEVER COMP., L. HANDLE 1
15 53192268000 BOLT, WIRE ADJUSTING 1
16 90113KSP901 BOLT, L. HANDLE LEVER PIVOT 1
17 90321315670 NUT, FIXING 1
18 90651KYJ611 BAND, WIRE 2
19 938920502007 SCREW-WASHER, 5X20 1
20 938920502507 SCREW-WASHER, 5X25 1
21 938920503507 SCREW-WASHER, 5X35 1
22 938920504507 SCREW-WASHER, 5X45 1
23 9403008000 NUT, HEX., 8MM 1
24 9405006000 NUT, FLANGE, 6MM 1
25 960010602207 BOLT, FLANGE, 6X22 2
26 53172KYJT00 BRACKET, HANDLE LEVER 1
