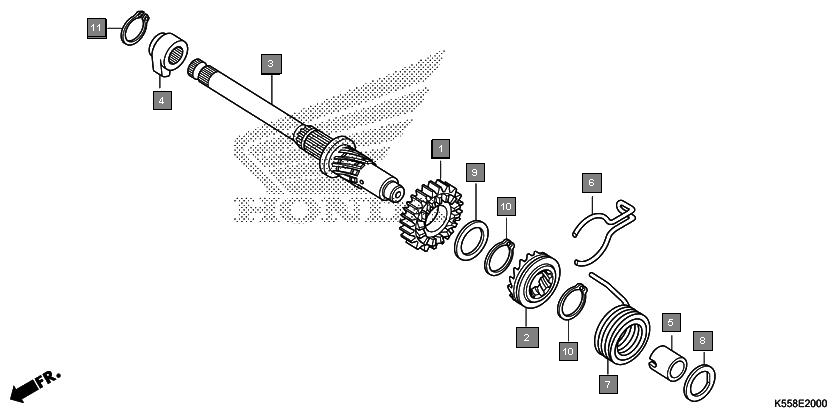

Motorcycles Livo CBF110SJ Engine Kick starter spindle
Ref.No. Part No. Description Oty
1 28211K23900 PINION, KICK STARTER(22T) 1
2 28221KWS900 RATCHET, STARTER DRIVE 1
3 28251KWS900 SPINDLE, KICK STARTER 1
4 28262KWS900 RETAINER, KICK SPINDLE 1
5 28265KWB600 COLLAR, KICK SPRING 1
6 28271KWB600 SPRING, FRICTION STARTER GEAR 1
7 28281KWB600 SPRING, KICK RETURN 1
8 90451KGH900 WASHER, SPECIAL, 14MM 1
9 90454KPH900 WASHER, 25X20.2X1 1
10 90605200000 SET RING, 20MM 2
11 9451018000 CIRCLIP, EXTERNAL, 18MM 1
12 28211K63D30 PINION, KICK STARTER(22T) 1
13 28221K63D30 RATCHET, STARTER DRIVE 1
14 28251K63D30 SPINDLE, KICK STARTER 1
15 90601K14960 CIRCLIP, EXTERNAL, 18MM 1
