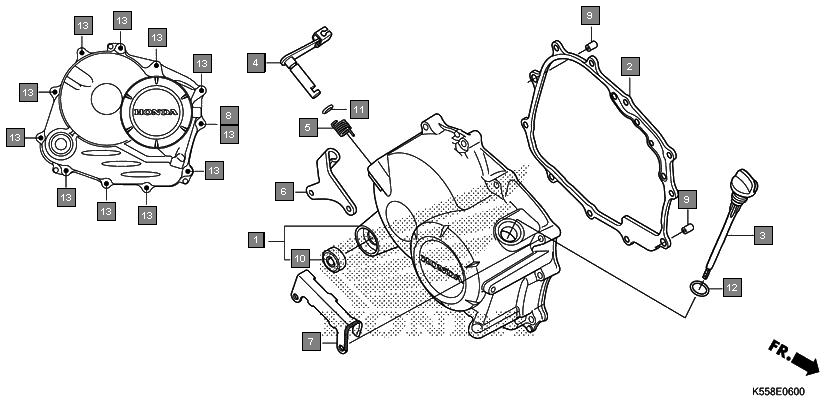

Motorcycles Livo CBF110SJ Engine Right crankcase cover
Ref.No. Part No. Description Oty
1 11394KWS901 GASKET, R. CRANKCASE COVER 1
2 11330K55950 COVER COMP., R. CRANKCASE 1
3 15651KWS900 GAUGE, OIL LEVEL 1
4 22810K23900 LEVER COMP., CLUTCH 1
5 22815166000 SPRING, CLUTCH LEVER 1
6 22821KYY900 RECEIVER, CLUTCH CABLE 1
7 31250K14910 CLAMPER, STARTER CABLE 1
8 90463ML7000 WASHER, SEALING, 6.5MM 1
9 90702KRM840 DOWEL PIN, 8X14 2
10 91204KSP911 OIL SEAL, 16X28X7 1
11 91305GFP900 O-RING, 8.8X1.9 1
12 91307KRM840 O-RING, 18X3 1
13 960010603500 BOLT, FLANGE, 6X35 11
14 11330K63D30 COVER COMP., R. CRANKCASE 1
15 11394K63D31 GASKET, R. CRANKCASE COVER 1
16 22810K63D30 LEVER COMP., CLUTCH 1
