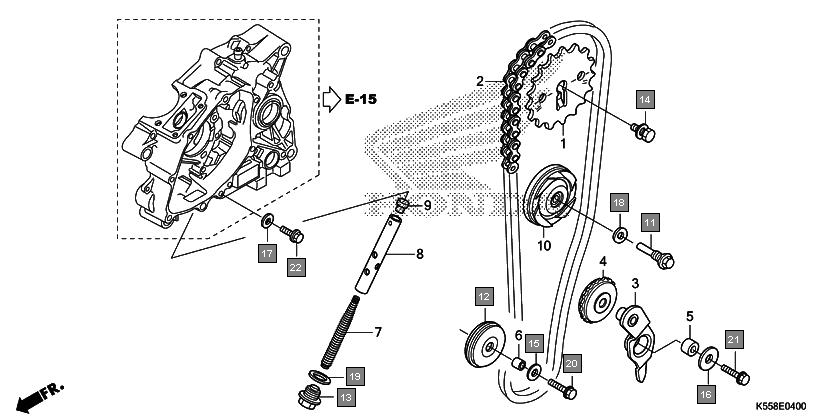

Motorcycles Livo CBF110SJ Engine Cam chain/tensioner
Ref.No. Part No. Description Oty
1 14615KFL850 PIN, GUIDE ROLLER 1
2 14670KWS900 ROLLER COMP., CAM CHAIN GUIDE 1
3 90081035000 BOLT, SEALING, 14MM 1
4 90082KYY900 BOLT, WASHER, 8X22 1
5 90401ZA0000 WASHER, PLAIN, 6.5X15 1
6 90404KWB600 WASHER, 8.5X26X2.3 1
7 90463ML7000 WASHER, SEALING, 6.5MM 1
8 90475KWB600 WASHER, 8MM 1
9 90544KF0000 WASHER, SEALING, 14MM 1
10 957010602500 BOLT, FLANGE, 6X25 1
11 957020602500 BOLT, FLANGE, 6X25 1
12 957010802500 BOLT, FLANGE, 8X25 1
13 957020802500 BOLT, FLANGE, 8X25 1
14 960010601400 BOLT, FLANGE, 6X14 1
