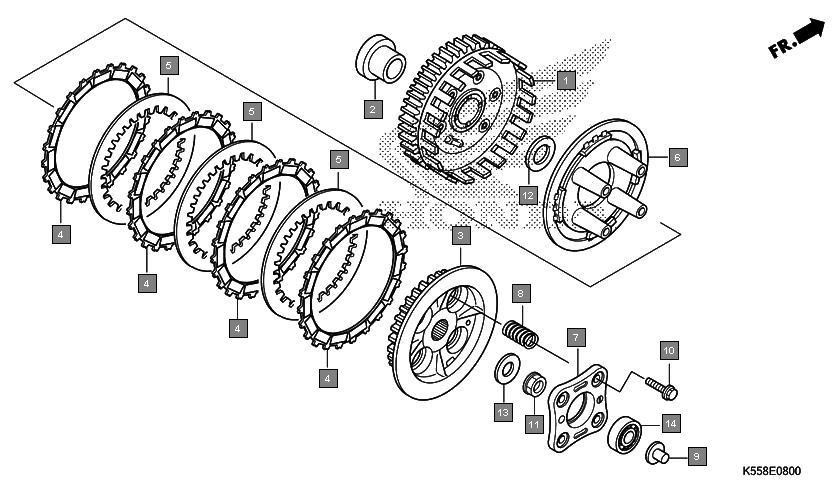

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 22100K55602 | OUTER COMP., CLUTCH(EXEDY) | 1 |
2 | 22115KWS900 | GUIDE, CLUTCH OUTER | 1 |
3 | 22120K23902 | CENTER, CLUTCH(EXEDY) | 1 |
4 | 22201K55602 | DISK, CLUTCH FRICTION(EXEDY) | 4 |
5 | 22321K23902 | PLATE, CLUTCH(EXEDY) | 3 |
6 | 22355K55602 | PLATE, CLUTCH PRESSURE(EXEDY) | 1 |
7 | 22361K23902 | PLATE, CLUTCH LIFTER(EXEDY) | 1 |
8 | 22401K23902 | SPRING, CLUTCH(EXEDY) | 4 |
9 | 22847KCC900 | ROD, CLUTCH LIFTER | 1 |
10 | 90050KPH900 | BOLT, SPECIAL FLANGE, 6X20 | 4 |
11 | 90202KRM840 | NUT, SPECIAL FLANGE, 14MM | 1 |
12 | 90403KPH900 | WASHER, THRUST, 17MM | 1 |
13 | 90432KPTA00 | WASHER, 14.2X26X3 | 1 |
14 | 961006200000 | BEARING, RADIAL BALL, 6200 | 1 |
