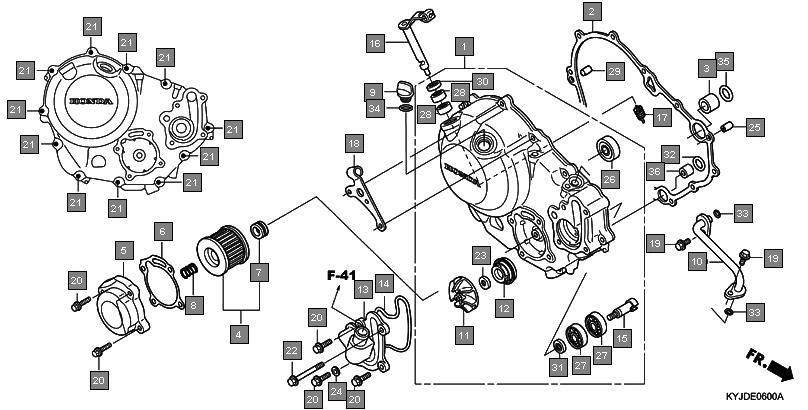

Motorcycles CBR250R CBR250RAD Engine Right crankcase cover
Ref.No. Part No. Description Oty
1 11300KYJ710 COVER ASSY., R. CRANKCASE 1
2 11394KYJ900 GASKET, R. CRANKCASE COVER 1
3 15326KT7000 COLLAR, OIL PATH, 18MM 1
4 15410KYJ901 ELEMENT, OIL FILTER 1
5 15411KYJ900 COVER, OIL FILTER 1
6 15412KYJ901 GASKET, OIL FILTER COVER 1
7 15413MC8000 RUBBER, FILTER 1
8 15414KF0000 SPRING, OIL FILTER ELEMENT SETTING 1
9 15611KA4710 CAP, OIL FILLER 1
10 19120KYJ900 PIPE COMP., WATER 1
11 19215KGH900 IMPELLER, WATER PUMP 1
12 19217P72013 SEAL, MECHANICAL 1
13 19220KYJ900 COVER COMP., WATER PUMP 1
14 19226KYJ710 GASKET, WATER PUMP COVER 1
15 19241KYJ900 SHAFT, WATER PUMP 1
16 22810KYJ900 LEVER COMP., CLUTCH 1
17 22815KM7700 SPRING, CLUTCH LEVER 1
18 22821KYJ900 RECEIVER, CLUTCH CABLE 1
19 90010KYJ900 BOLT, FLANGE, 6X16(NSHF) 2
20 90012KYJ900 BOLT, FLANGE, 6X25(NSHF) 7
21 90013KYJ900 BOLT, FLANGE, 6X30(NSHF) 11
22 90015KYJ900 BOLT, FLANGE, 6X60(NSHF) 1
23 90423KW6900 WASHER, 7X13X1.2 1
24 90463ML7000 WASHER, SEALING, 6.5MM 1
25 90702KFM900 DOWEL PIN, 8X12 1
26 91009KYJ711 BEARING, RADIAL BALL SPECIAL, 6001U 1
27 91015KYJ711 BEARING, RADIAL BALL, 6001 2
28 91022KYJ711 BEARING, NEEDLE, 12X16X10 2
29 9430208140 PIN B, DOWEL, 8X14 1
30 91204KK0003 OIL SEAL, 12X18X5(ARAI) 1
31 91205KF0003 OIL SEAL, 12X20X5(ARAI) 1
32 91301KYJ710 O-RING, 11.8X1.9 1
33 91302KYJ710 O-RING, 9.8X2.4 2
34 91307035000 O-RING, 18X3 1
35 91322PT0004 O-RING, 17.8X1.9(ARAI) 1
36 9430112160 PIN A, DOWEL, 12X16 1
