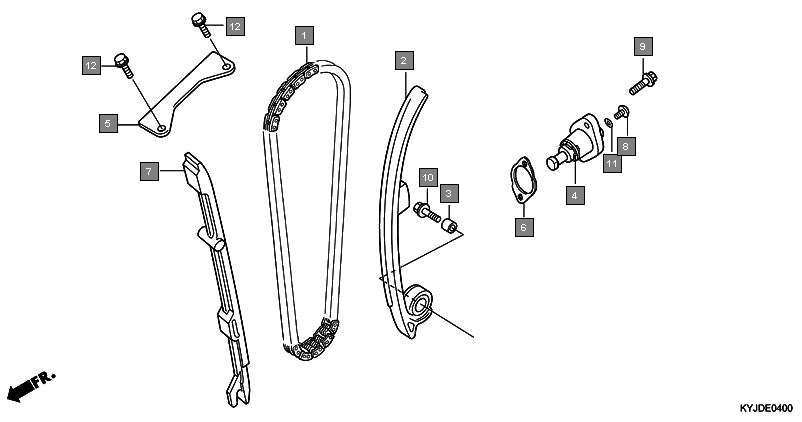

Motorcycles CBR250R CBR250RAD Engine Cam chain/tensioner
Ref.No. Part No. Description Oty
1 14401KYJ901 CHAIN, CAM(128L)(DAIDO) 1
2 14510KYJ900 TENSIONER COMP., CAM CHAIN 1
3 14517KYJ900 COLLAR, TENSIONER 1
4 14520KYJ711 LIFTER ASSY., TENSIONER 1
5 14546KYJ900 GUIDE B, CAM CHAIN 1
6 14560KGH900 GASKET, TENSIONER LIFTER 1
7 14611KYJ900 GUIDE A, CAM CHAIN 1
8 90005KYJ900 SCREW, PAN, 6X6 1
9 90011KYJ900 BOLT, FLANGE, 6X22(NSHF) 2
10 90022KYJ900 BOLT-WASHER, 6X25 1
11 91306MG3000 O-RING, 1.5X9.5 1
12 957010601400 BOLT, FLANGE, 6X14 2
13 957020601400 BOLT, FLANGE, 6X14 2
