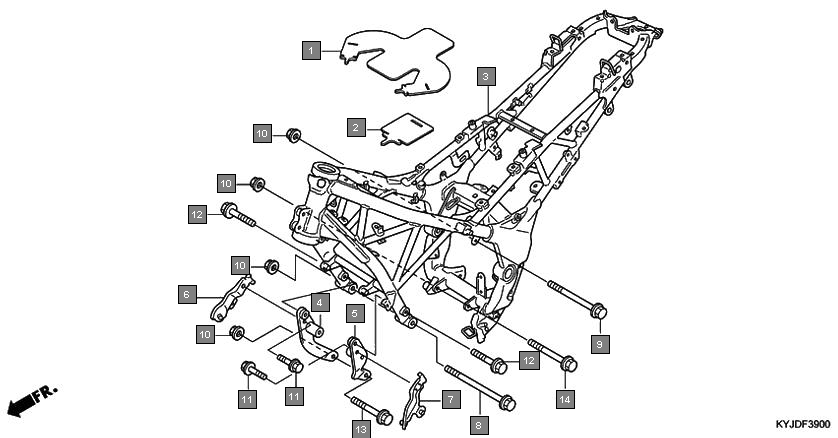

Motorcycles CBR250R CBR250RAC Frame Frame body
Ref.No. Part No. Description Oty
1 17543KYJ900 RUBBER, GUARD 1
2 32800KYJ900 RUBBER SHEET, HARNESS GUARD 1
3 50100KYJT00 BODY COMP., FRAME 1
4 50100KYJ610 BODY COMP., FRAME 1
5 50351KYJ900 PLATE COMP., R. FR. ENGINE HANGER 1
6 50361KYJ900 PLATE COMP., L. FR. ENGINE HANGER 1
7 64315KYJ900 STAY, R. COWL UNDER 1
8 64325KYJ900 STAY, L. COWL UNDER 1
9 90111KYJ900 BOLT, FLANGE, 10X273 1
10 90113KYJ900 BOLT, FLANGE, 10X145 1
11 9405010000 NUT, FLANGE, 10MM 4
12 957010801607 BOLT, FLANGE, 8X16 2
13 957020801607 BOLT, FLANGE, 8X16 2
14 958011007000 BOLT, FLANGE, 10X70 2
15 958021007000 BOLT, FLANGE, 10X70 2
16 958011010500 BOLT, FLANGE, 10X105 1
17 958021010500 BOLT, FLANGE, 10X105 1
18 958011013000 BOLT, FLANGE, 10X130 1
19 958021013000 BOLT, FLANGE, 10X130 1
