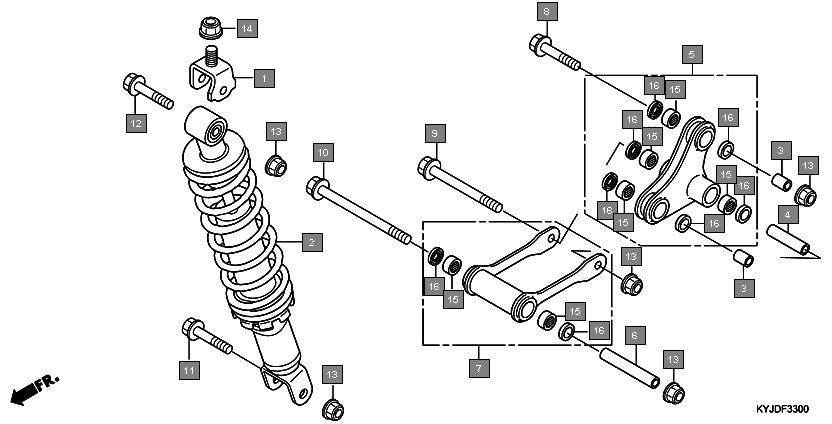

Motorcycles CBR250R CBR250RAC Frame Rear cushion
Ref.No. Part No. Description Oty
1 50175KYJ900 HOLDER COMP., RR. CUSHION UPPER 1
2 52400KYJ711 CUSHION ASSY., RR. 1
3 52463KYJ900 COLLAR B, CUSHION ARM 2
4 52464KYJ900 COLLAR C, CUSHION ARM 1
5 52465KYJ900 ARM SUB ASSY., CUSHION 1
6 52472KYJ900 COLLAR, CUSHION CONNECTING ROD 1
7 52475KYJ900 ROD SUB ASSY., CUSHION CONNECTING 1
8 90101KBS900 BOLT, FLANGE, 10X65 1
9 90101KYJ900 BOLT, FLANGE, 10X106 1
10 90104KYJ900 BOLT, FLANGE, 10X146 1
11 90152KYJ900 BOLT, FLANGE, 10X55 1
12 90153KYJ900 BOLT, FLANGE, 10X53 1
13 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 5
14 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
15 91071KYJ711 BEARING, NEEDLE, 17X24X17(NRB) 6
16 91071MY1005 BEARING, NEEDLE, 17X24X17 (KOYO) 6
17 91262KV3831 DUST SEAL, 17X24X5(ARAI) 8
