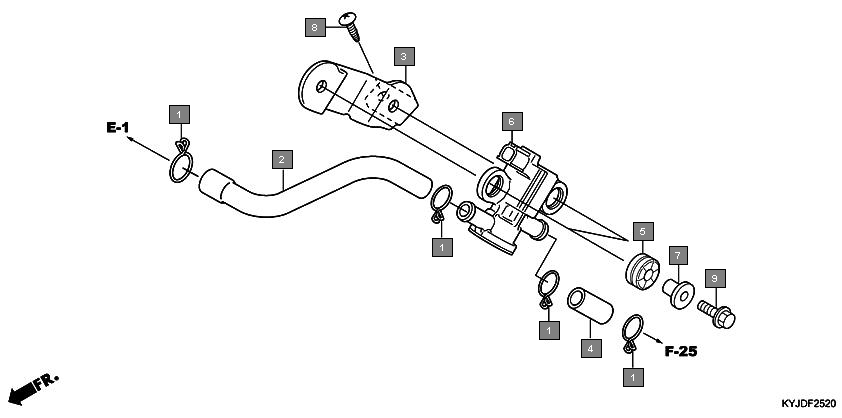

Motorcycles CBR250R CBR250RAC Frame Air injection solenoid valve
Ref.No. Part No. Description Oty
1 15772551000 CLIP, BREATHER TUBE 4
2 18613KYJ900 HOSE, AIR INJECTION SOLENOID VALVE 1
3 18652KYJ900 STAY COMP., AIR INJECTION SOLENOID VALVE 1
4 18653KYJ900 TUBE(AISV-AIR CLEANER) 1
5 33115KVK900 RUBBER, HEADLIGHT 2
6 36450KVK901 VALVE ASSY., AIR INJECTION SOLENOID 1
7 61104428010 COLLAR, FR. FENDER(WHITE)..... (FOR RR.) 2
8 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
9 9390325280 SCREW, TAPPING, 5X12 1
10 957010602208 BOLT, FLANGE, 6X22 2
11 957020602208 BOLT, FLANGE, 6X22 2
