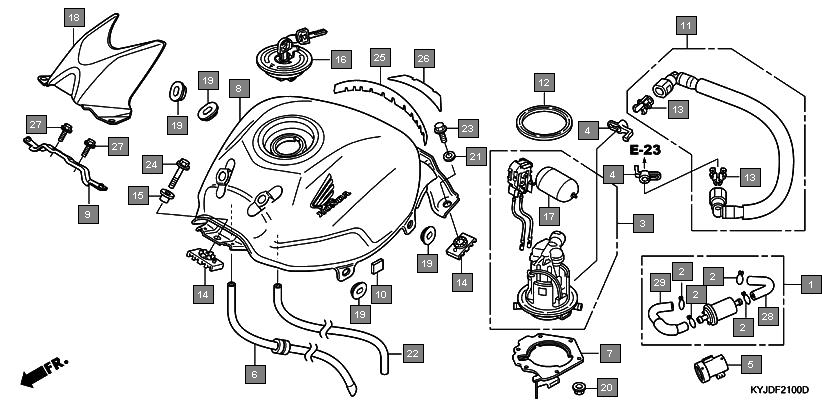

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06160KYJ900 | FILTER KIT, FUEL | 1 |
2 | 15771KV6000 | CLIP, OIL DRAIN TUBE | 4 |
3 | 16700KYJ901 | PUMP ASSY., FUEL | 1 |
4 | 16718KTW900 | DAMPER A, CONNECTOR | 2 |
5 | 16912KYJ900 | HOLDER, FUEL FILTER | 1 |
6 | 17418KYJ960 | TUBE, FUEL TANK BREATHER | 1 |
7 | 17507KYJ900 | PLATE COMP., SETTING | 1 |
8 | 17520KYJ900ZA | TANK SET, FUEL(WL)*TYPE1* | 1 |
9 | 17520KYJ900ZB | TANK SET, FUEL(WL)*TYPE2* | 1 |
10 | 17520KYJH10ZA | TANK SET, FUEL(WL) *PB332P* PEARL HERON BLUE | 1 |
11 | 17522KPPT00 | STAY, TANK LID | 1 |
12 | 17525KPPT00 | RUBBER, FUEL TANK | 2 |
13 | 17570KYJ901 | HOSE COMP., FUEL FEED | 1 |
14 | 17572KTR941 | GASKET, FUEL PUMP | 1 |
15 | 17577KSSB31 | RETAINER(GRAY)(TOKAI) | 2 |
16 | 17613KPPT00 | CUSHION, FUEL TANK | 3 |
17 | 17614KPPT00 | COLLAR, FUEL TANK | 1 |
18 | 17620MCB611 | CAP COMP., FUEL FILLER | 1 |
19 | 37800KYJ901 | FUEL UNIT | 1 |
20 | 64450KPPT00ZA | COVER, FUEL TANK *NHA35M* ASTEROID BLACK METALLIC | 1 |
21 | 64450KPPT00ZG | COVER, FUEL TANK *R4C* CANDY RUBY RED | 1 |
22 | 64450KPPT00ZP | COVER, FUEL TANK *PB332P* PEARL HERON BLUE | 1 |
23 | 83551300000 | GROMMET, AIR CLEANER CASE | 6 |
24 | 9405006000 | NUT, FLANGE, 6MM | 6 |
25 | 9410306800 | WASHER, PLAIN, 6MM | 2 |
26 | 950058077020 | TUBE, 8X770(95005-80001-20M) | 1 |
27 | 957010601208 | BOLT, FLANGE, 6X12 | 2 |
28 | 957020601208 | BOLT, FLANGE, 6X12 | 2 |
29 | 957010802508 | BOLT, FLANGE, 8X25 | 1 |
30 | 957020802508 | BOLT, FLANGE, 8X25 | 1 |
31 | 17527KPPN00 | FILM A,TANK PROTECTOR | 1 |
32 | 17528KPPN00 | FILM B, TANK PROTECTOR | 1 |
33 | 934010601400 | BOLT-WASHER, 6X14 | 2 |
34 | 17541KYJ900 | TUBE A, FUEL PUMP | 1 |
35 | 17542KYJ900 | TUBE B, FUEL PUMP | 1 |
