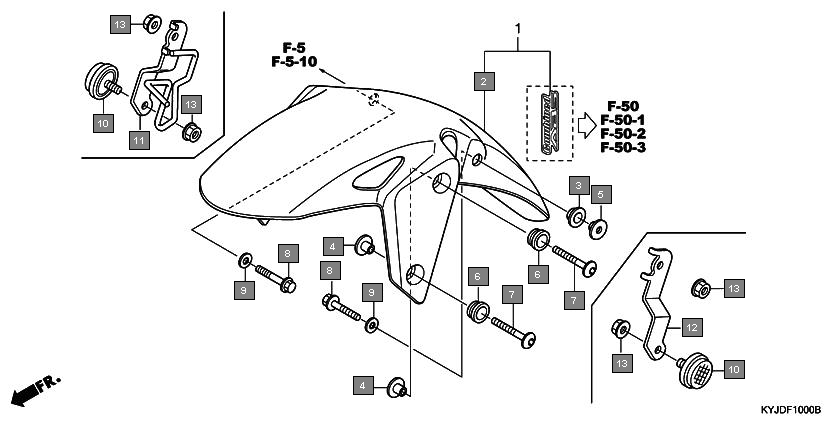

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 61000KYJ910ZC | FENDER SET, FR.(WL) *R4C* CANDY RUBY RED | 1 |
2 | 61000KYJ910ZD | FENDER SET, FR.(WL) *NHA35M* ASTEROID BLACK METALLIC | 1 |
3 | 61000KYJ910ZH | FENDER SET, FR.(WL) *R321* SPORTS RED | 1 |
4 | 61103KPF910 | RUBBER, FR. FENDER MOUNTING | 2 |
5 | 61103KRY900 | COLLAR A, FR. FENDER | 4 |
6 | 61105KPF910 | COLLAR, FR. FENDER MOUNTING | 2 |
7 | 61105KRY900 | RUBBER, FR. FENDER MOUNTING | 4 |
8 | 90130KYJ900 | SCREW, PAN, 6X22 | 4 |
9 | 90131KYJ900 | BOLT, FLANGE, 6X22 | 2 |
10 | 90485286000 | WASHER, 6MM | 2 |
