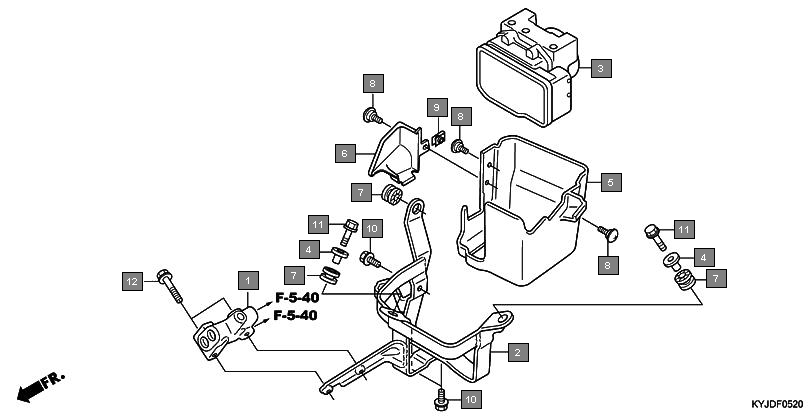

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 46400KYJ911 | VALVE ASSY., PROPORTIONING CONTROL | 1 |
2 | 50245KYJ910 | STAY COMP., ABS MODULATOR | 1 |
3 | 57110KYJ791 | MODULATOR ASSY., ABS | 1 |
4 | 61102KTYD30 | COLLAR, RADIATOR MOUNTING | 2 |
5 | 61410KYJ910 | COVER A, ABS MODULATOR | 1 |
6 | 61411KYJ910 | COVER B, ABS MODULATOR | 1 |
7 | 77208KW7900 | RUBBER B, SEAT MOUNTING | 3 |
8 | 90115KW7900 | SCREW, VISOR SPECIAL SETTING | 3 |
9 | 90677KANT00 | NUT, CLIP, 5MM | 1 |
10 | 957010601200 | BOLT, FLANGE, 6X12 | 3 |
11 | 957020601200 | BOLT, FLANGE, 6X12 | 3 |
12 | 957010602200 | BOLT, FLANGE, 6X22 | 2 |
13 | 957020602200 | BOLT, FLANGE, 6X22 | 2 |
14 | 957010604007 | BOLT, FLANGE, 6X40 | 2 |
15 | 957020604007 | BOLT, FLANGE, 6X40 | 2 |
