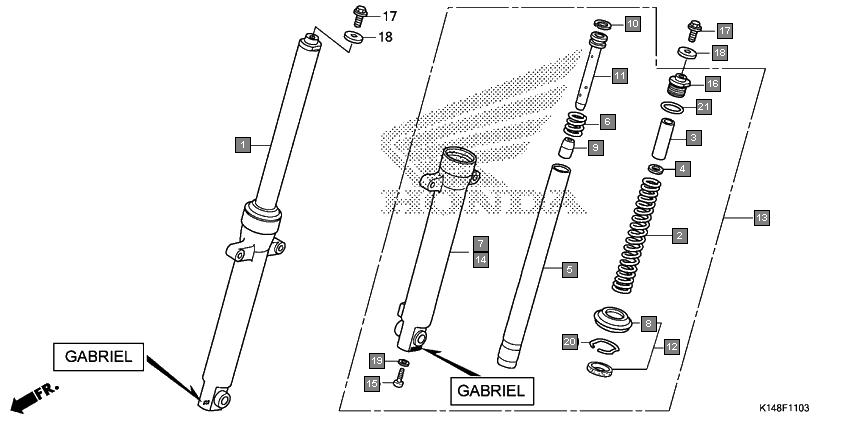

Motorcycles Dream Yuga CB110J Frame Front fork(cb110j/bk)(gabriel)
Ref.No. Part No. Description Oty
1 51400K14C01 FORK ASSY., R. FR.(GABRIEL) 1
2 51401K14C01 SPRING, FR. FORK(GABRIEL) 2
3 51403K14C01 COLLAR, SPRING(GABRIEL) 2
4 51404K14C01 JOINT, SPRING(GABRIEL) 2
5 51410K14C01 PIPE COMP., FR. FORK(GABRIEL). 2
6 51412K14C01 SPRING, REBOUND(GABRIEL) 2
7 51420K14C01 CASE, R. FR. BOTTOM(GABRIEL) 1
8 51425K14C01 SEAL, DUST(GABRIEL) 1
9 51432K14C01 PIECE, OIL LOCK(GABRIEL) 2
10 51437K14C01 RING, PISTON(GABRIEL) 2
11 51440K14C01 PIPE, SEAT(GABRIEL) 1
12 51490K14C01 SEAL SET, FR. FORK(GABRIEL) 1
13 51500K14C01 FORK ASSY., L. FR.(GABRIEL) 1
14 51520K14C01 CASE, L. FR. BOTTOM(GABRIEL) 1
15 90116K14C01 BOLT, SOCKET, 8MM(GABRIEL) 2
16 90123K14C01 BOLT A, FR. FORK(GABRIEL) 2
17 90123KRM860 BOLT, FR. FORK 2
18 90521KSP900 WASHER, 10.3MM 2
19 90544K14C01 WASHER, SPECIAL, 8MM(GABRIEL) 2
20 90651K14C01 RING, OIL SEAL STOP(GABRIEL) 2
21 91351K14C01 O-RING(GABRIEL) 2
