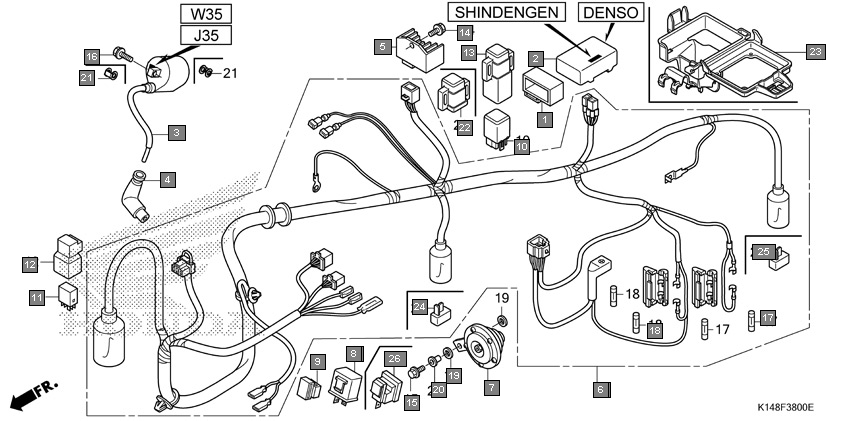

Motorcycles Dream Yuga CB110J Frame Wire harness
Ref.No. Part No. Description Oty
1 30401K14901 CUSHION, C.D.I. UNIT 1
2 30500K14931 COIL ASSY., IGNITION(JAGDISH)(J35) 1
3 30410K14C01 SPARK UNIT(SHINDENGEN) 1
4 30500K14901 COIL ASSY., IGNITION(WINGS) (W35) 1
5 32100K55600 HARNESS, WIRE 1
6 30700KTE601 CAP ASSY., NOISE SUPPRESSOR(ANU) 1
7 38301K14962 RELAY COMP., WINKER (STAR ENGINEERS) 1
8 30700K14901 CAP ASSY., NOISE SUPPRESSOR (KUNAL) 1
9 30410K14A31 SPARK UNIT COMP.(SHINDENGEN) 1
10 31600K14961 RECTIFIER COMP., REGULATE(STAR ENGINEERS) 1
11 31600KTE601 RECTIFIER COMP., REGULATOR (STAR ENGINEERS)6ID, 1
12 31600K14A31 RECTIFIER COMP., REGULATE (SINDENGEN) 1
13 32100K14A30 HARNESS, WIRE(MOTHERSON SUMI). 1
14 31600KWS901 RECTIFIER COMP., REGULATOR 1
15 38110K63D31 HORN COMP. 1
16 31600K14962 RECTIFIER COMP., REGULATE(SINDENGEN) 1
17 38117KYJT00 COLLAR, HORN SETTING 1
18 32100K14610 HARNESS, WIRE 1
19 32100K14940 HARNESS, WIRE(MOTHERSON SUMI) 1
20 31700124008 RECTIFIER ASSY., SILICON(SHINDENGEN) 1
21 32100K14960 HARNESS, WIRE(MINDA SAI) 1
22 38301K63D21 RELAY COMP., WINKER (STAR ENGINEERS) 1
23 32100K55900 HARNESS, WIRE 1
24 32100K14A00 HARNESS, WIRE(MOTHERSON SUMI) 1
25 32100K14920 HARNESS, WIRE 1
26 32100K14600 HARNESS, WIRE 1
27 32100K14930 HARNESS, WIRE(MOTHERSON SUMI) 1
28 32100K14900 HARNESS, WIRE 1
29 38110K14901 HORN COMP. 1
30 38301KWS901 RELAY COMP., WINKER(MULTILINK) 1
31 38301K14931 RELAY COMP., WINKER (STAR ENGINEERS) 1
32 38301K14961 RELAY COMP., WINKER (STAR ENGINEERS) 1
33 38306GE7000 SUSPENSION, WINKER RELAY 1
34 38306K14931 SUSPENSION, WINKER RELAY (STAR ENGINEERS) 1
35 38501KWH971 RELAY COMP., STARTER(JAGDISH) 1
36 38501KPL901 RELAY COMP., STARTER(MULTILINK) 1
37 38502KWA931 RELAY COMP., POWER (MICRO ISO 5P)(MULTILINK) 1
38 38502KSP910 RELAY COMP., POWER (MICRO ISO 5P) 1
39 38506KSP910 SUSPENSION, POWER RELAY 1
40 38506KZAW20 SUSPENSION, STARTER RELAY 1
41 957020601200 BOLT, FLANGE, 6X12 1
42 957010601200 BOLT, FLANGE, 6X12 1
43 957020602000 BOLT, FLANGE, 6X20 1
44 957010602000 BOLT, FLANGE, 6X20 1
45 92101060204J BOLT, HEX., 6X20 2
46 960010602000 BOLT, FLANGE, 6X20 2
47 9820011000 FUSE A(10A) 1
48 9820011500 FUSE(15A) 2
49 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
50 38117KFE701 COLLAR, HORN SETTING 1
51 30520GFM900 SPACER, IGNITION COIL 2
52 38506K23910 SUSPENSION, STARTER RELAY 1
53 50370K23900 HOLDER, C.D.I. UNIT 1
54 50370K14960 HOLDER, C.D.I. UNIT 1
