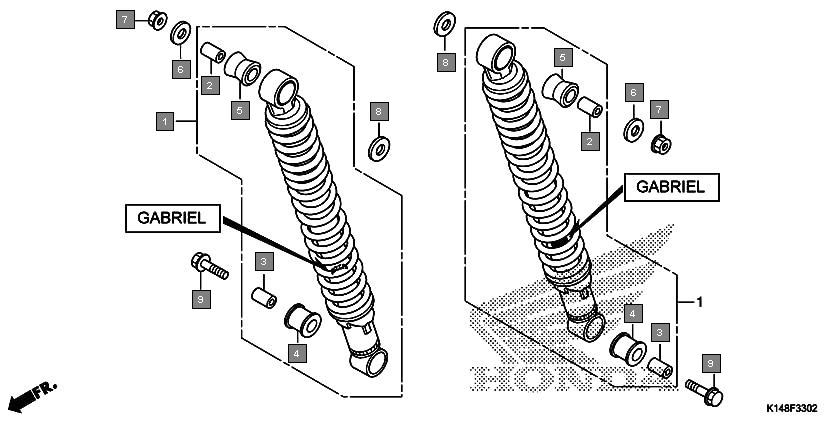

Motorcycles Dream Yuga CB110J Frame Rear cushion(cb110e/me/amf)(gabriel)
Ref.No. Part No. Description Oty
1 52400K55952 CUSHION ASSY., RR.(GABRIEL) 1
2 52486KWS901 COLLAR, RUBBER BUSH(GABRIEL) 2
3 52487KWS901 COLLAR, RUBBER BUSH(GABRIEL) 2
4 52489K23901 BUSH, RUBBER(GABRIEL) 2
5 52489KWS901 BUSH, RUBBER(GABRIEL) 2
6 90551KTE910 WASHER, SPECIAL, 10MM 2
7 9405010000 NUT, FLANGE, 10MM 2
8 9410112000 WASHER, PLAIN, 12MM 2
9 958011003500 BOLT, FLANGE, 10X35 2
10 958021003500 BOLT, FLANGE, 10X35 2
