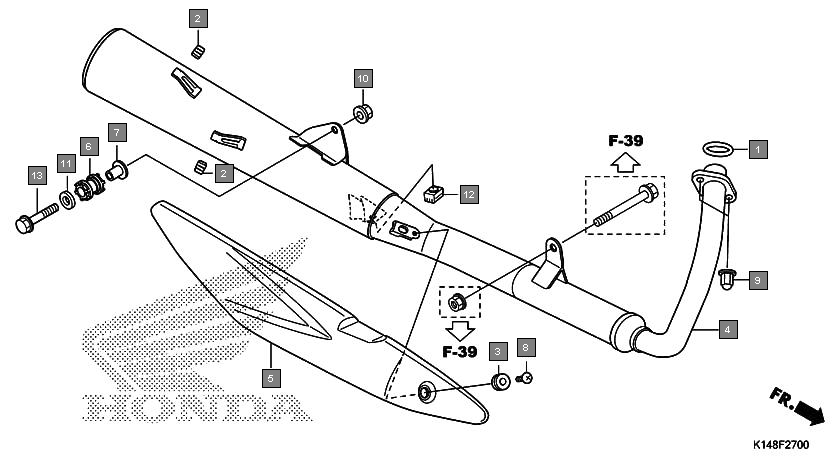

Motorcycles Dream Yuga CB110J Frame Exhaust muffler
Ref.No. Part No. Description Oty
1 18291GE2921 GASKET, EX. PIPE 1
2 18293MCAA20 RUBBER, PROTECTOR PACKING 2
3 18345MBT610 RUBBER, PROTECTOR MOUNTING 1
4 18350K14930 MUFFLER COMP., EX. 1
5 18350K14900 MUFFLER COMP., EX. 1
6 18355K14670 COVER, MUFFLER 1
7 18355K14900 COVER, MUFFLER 1
8 18421KBA900 RUBBER, MUFFLER MOUNTING 1
9 18422KBA900 COLLAR, MUFFLER MOUNTING 1
10 90113GFPB00 SCREW, PAN, 6X12 1
11 90305KSP900 NUT, EXHAUST PIPE, 8MM 2
12 9405008000 NUT, FLANGE, 8MM 1
13 90505KY4900 WASHER, PLAIN, 8MM 1
14 9410308000 WASHER, PLAIN, 8MM 1
15 9501161000 RUBBER A, STAND STOPPER 1
16 958010804508 BOLT, FLANGE, 8X45 1
17 958020804508 BOLT, FLANGE, 8X45 1
