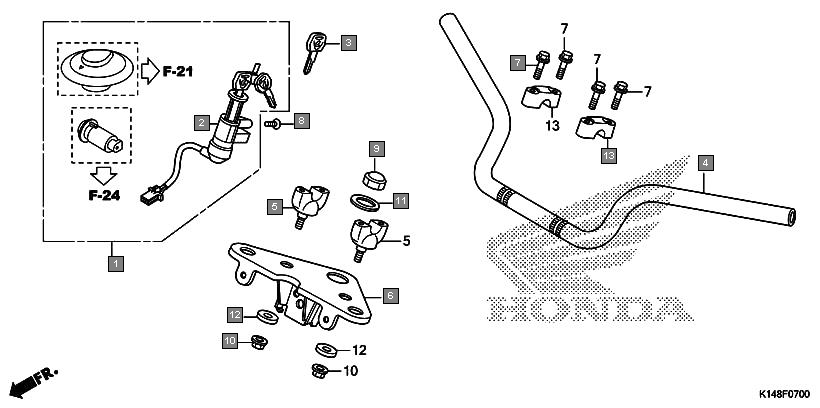

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 35010K14A31 | KEY SET(MINDA)................ | 1 |
2 | 35010K14931 | KEY SET(MINDA) | 1 |
3 | 35010K14900 | KEY SET(JAY USHIN) | 1 |
4 | 35010K63D30 | KEY SET | 1 |
5 | 35100K14901 | SWITCH ASSY., COMBINATION & LOCK(JAY USHIN) | 1 |
6 | 35100K14931 | SWITCH ASSY., COMBINATION & LOCK(MINDA) | 1 |
7 | 53100K14900ZB | PIPE, STEERING HANDLE *NH105* MAT BLACK | 1 |
8 | 35121KWS900 | KEY, BLANK(JAY USHIN) | 1 |
9 | 53130KTE910 | HOLDER, HANDLE UNDER | 2 |
10 | 53230K14900ZA | BRIDGE COMP., FORK TOP *NH105* MAT BLACK | 1 |
11 | 53230K23900ZA | BRIDGE COMP., FORK TOP *NH105* MAT BLACK | 1 |
12 | 90117383000 | BOLT, FLANGE, 6X28 | 4 |
13 | 90164KPL900 | SCREW, U-LOCK FLAT, 6X12 | 2 |
14 | 90304K63D30 | NUT, STEERING STEM | 1 |
15 | 90304KSP900 | NUT, STEERING STEM | 1 |
16 | 90304KTE911 | NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) | 2 |
17 | 90503KSP900 | WASHER, STEERING STEM | 1 |
18 | 90521427770 | WASHER, 10.3MM | 2 |
19 | 9501421101 | HOLDER A1, HANDLE PIPE UPPER | 2 |
