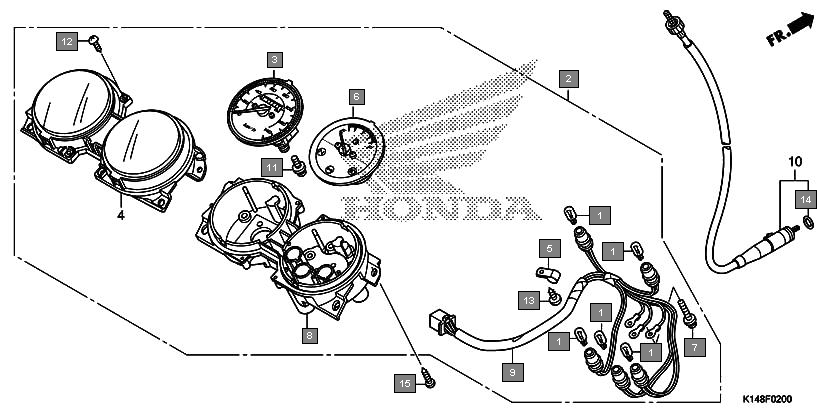

Motorcycles Dream Yuga CB110J Frame Meter
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 5
2 37100K14C01 METER ASSY., COMBINATION(KPH) 1
3 37210K14C01 SPEEDOMETER COMP 1
4 37215KS3901 CLAMP 1
5 37300K14901 METER COMP., FUEL 1
6 37305KE5008 SCREW-WASHER, 3X22 3
7 37610K14901 CASE ASSY., UNDER 1
8 37619KTE601 SOCKET COMP. 1
9 44830K14901 CABLE COMP., SPEEDOMETER 1
10 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
11 90101KY6008 SCREW, TAPPING, 3X14 4
12 90109MZ5008 SCREW, TAPPING, 4X14 1
13 91256KK3840 O-RING, 10X1.5 1
14 9390335310 SCREW, TAPPING, 5X16 4
