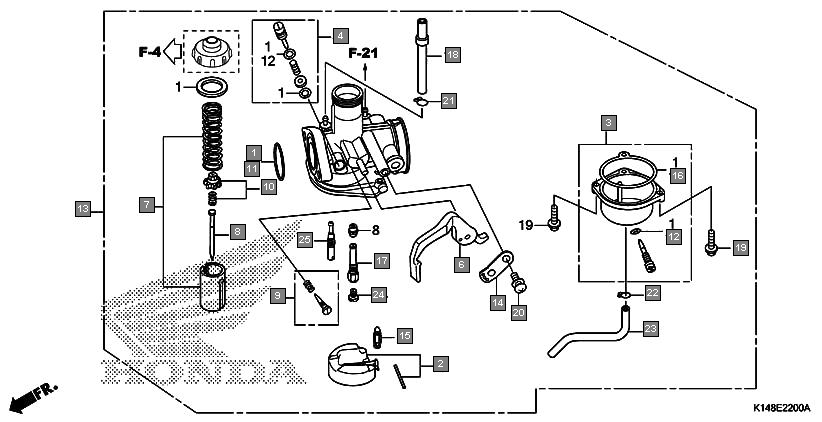

Motorcycles Dream Yuga CB110J Engine Carburetor(cb110d/md)
Ref.No. Part No. Description Oty
1 16010KWS901 GASKET SET 1
2 16013KRB901 FLOAT SET 1
3 16015KZAW01 CHAMBER SET, FLOAT 1
4 16016KPH651 SCREW SET 1
5 16019K14901 LEVER COMP., CHOKE 1
6 16022KZAW01 VALVE SET, THROTTLE 1
7 16027K14901 NEEDLE SET, JET 1
8 16028KYY901 SCREW SET 1
9 16037KPH901 PLATE SET, VALVE 1
10 16075KTC901 O-RING 1
11 16076KPL901 O-RING 2
12 16100K14901 CARBURETOR ASSY.(PB7EV A) 1
13 16119KZAW01 PLATE, SETTING 1
14 16155KRS861 VALVE COMP., FLOAT 1
15 16163KWS901 GASKET, FLOAT CHAMBER 1
16 16165K14901 HOLDER, NEEDLE JET 1
17 16197K14901 TUBE COMP. 1
18 938920401808 SCREW-WASHER, 4X18 2
19 938920501218 SCREW-WASHER, 5X12 1
20 9500202089 CLIP, TUBE(B8) 1
21 9500202659 CLIP, TUBE(B6.5) 1
22 950053540050 TUBE, 3.5X400(95005-35001-50M) 1
23 99101KWS1020 JET, MAIN, #102 1
24 99103KZA0350 JET, SLOW, #35 1
