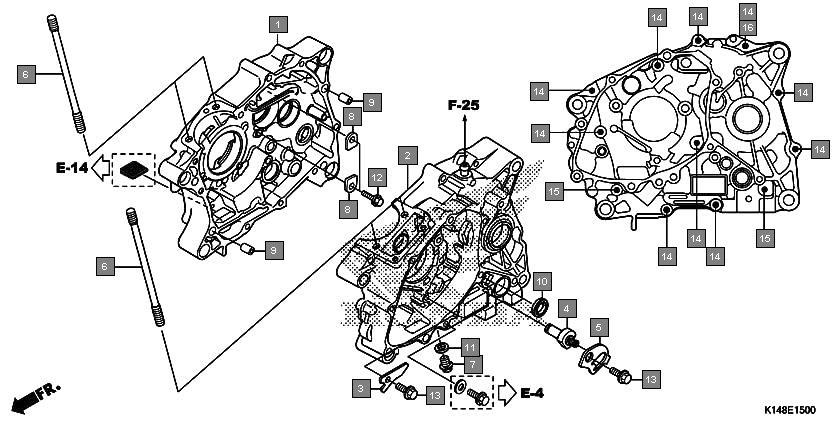

Motorcycles Dream Yuga CB110J Engine Crankcase
Ref.No. Part No. Description Oty
1 11100K14900 CRANKCASE COMP., R. 1
2 11200K14910 CRANKCASE COMP., L. 1
3 11200K14900 CRANKCASE COMP., L. 1
4 11218KWS900 PLATE, OIL STOPPER 1
5 35750KWS901 CONTACT, NEUTRAL SWITCH 1
6 35755KWS901 PLATE, CONTACT FIXING 1
7 90031KZAW00 BOLT, CYLINDER STUD 4
8 90131KRM840 BOLT, DRAIN PLUG, 12MM 1
9 90441KRM840 PLATE, BEARING HOLDER 2
10 90703KWS900 DOWEL PIN, 10X14 1
11 91203KSP912 OIL SEAL, 14X22X5(FENNER) 1
12 91203KSP911 OIL SEAL, 14X22X5(ARAI) 1
13 9410912000 WASHER, DRAIN PLUG, 12MM 1
14 957020601600 BOLT, FLANGE, 6X16 2
15 957010601600 BOLT, FLANGE, 6X16 2
16 960010601400 BOLT, FLANGE, 6X14 2
17 960010604000 BOLT, FLANGE, 6X40 10
18 960010606000 BOLT, FLANGE, 6X60 2
19 11100K55900 CRANKCASE COMP, R 1
20 11200K55900 CRANKCASE COMP, L 1
21 960010604000 BOLT, FLANGE, 6X40 9
22 960010603200 BOLT, FLANGE, 6X32 1
