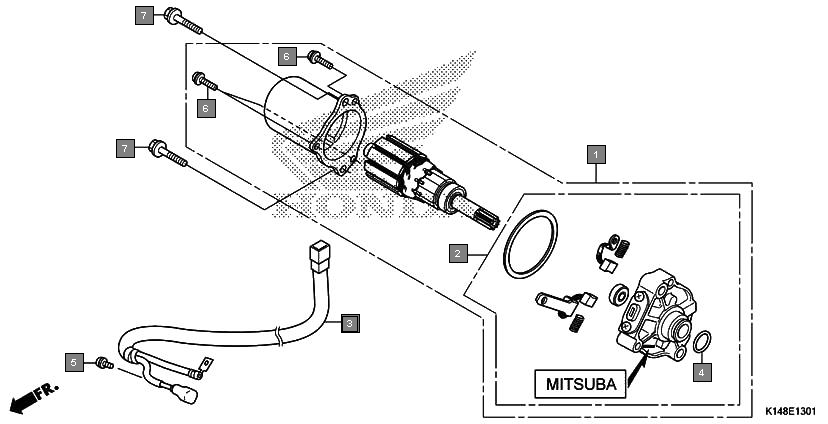

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 31210KWS912 | MOTOR UNIT, STARTER | 1 |
2 | 31210KWS911 | MOTOR UNIT, STARTER | 1 |
3 | 31214KWS901 | BRACKET COMP., FR. | 1 |
4 | 31214KWS902 | BRACKET COMP., FR. | 1 |
5 | 32105K55601 | SUB CORD, STARTER MOTOR | 1 |
6 | 32105K23911 | SUB CORD, STARTER MOTOR (MITSUBA) | 1 |
7 | 91309KEE630 | O-RING | 1 |
8 | 91309KZVL01 | O-RING | 1 |
9 | 938920400608 | SCREW-WASHER, 4X6 | 1 |
10 | 938920501608 | SCREW-WASHER, 5X16 | 3 |
11 | 960010603200 | BOLT, FLANGE, 6X32 | 2 |
