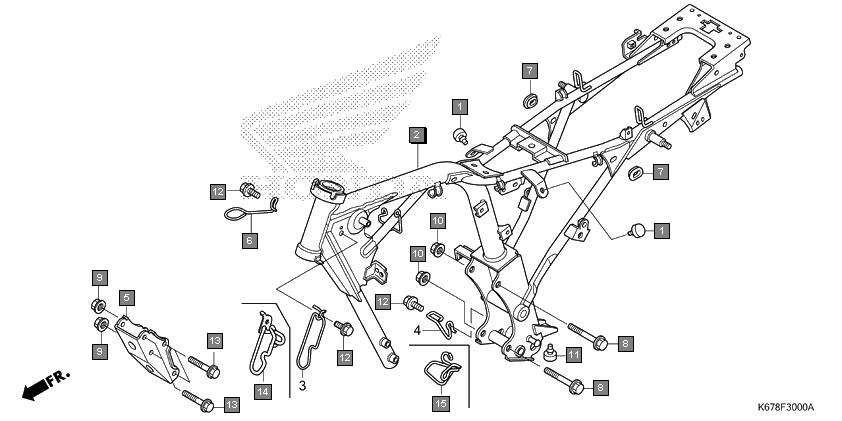

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17513K67900 | RUBBER, FUEL TANK STOPPER | 2 |
2 | 50100KTED80 | BODY COMP., FRAME | 1 |
3 | 50100KTEDB0 | BODY COMP., FRAME | 1 |
4 | 50100KTEDA0 | BODY COMP., FRAME | 1 |
5 | 50351KTE910 | PLATE, FR. ENGINE HANGER | 1 |
6 | 50721KTED00 | GUIDE, CLUTCH CABLE | 1 |
7 | 83551GE2000 | GROMMET, AIR CLEANER CASE | 2 |
8 | 90019399010 | BOLT, FLANGE, 10X110 | 2 |
9 | 9405008000 | NUT, FLANGE, 8MM | 4 |
10 | 9405010000 | NUT, FLANGE, 10MM | 2 |
11 | 9501162000 | RUBBER B, STAND STOPPER | 1 |
12 | 957010601200 | BOLT, FLANGE, 6X12 | 3 |
13 | 958010808500 | BOLT, FLANGE, 8X85 | 4 |
14 | 50187KTED00 | GUIDE, MAIN HARNES | 1 |
15 | 50296K67930 | GUIDE, DRAIN HOSE | 1 |
