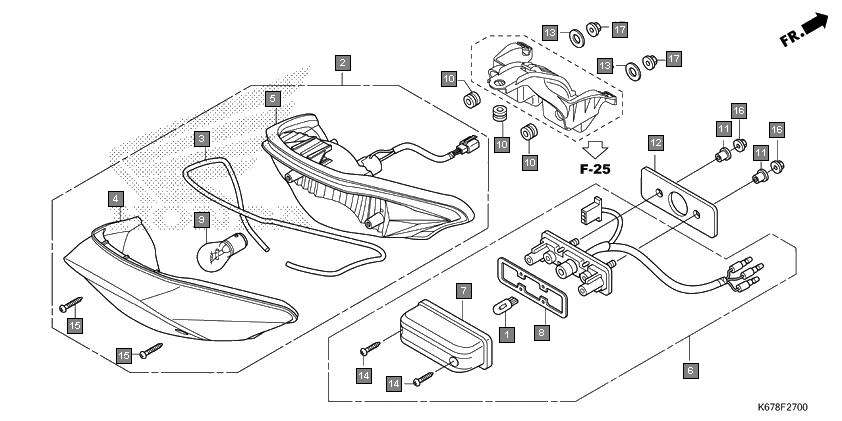

Motorcycles CB Shine SP CBF125MJ/MK Frame Taillight
Ref.No. Part No. Description Oty
1 33301KYJ901 BULB, WEDGE BASE(T10 12V 5W) 1
2 33700KSPB01 TAILLIGHT UNIT 1
3 33701KSPB01 PACKING 1
4 33702KSPB01 LENS, TAILLIGHT 1
5 33703KSPB01 BASE COMP., TAILLIGHT 1
6 33720K67901 LIGHT ASSY., LICENSE(12V 5W) 1
7 33723KSPB01 COVER COMP. 1
8 33729KSPB01 PACKING, LENS 1
9 34907KVN901 BULB, TAIL & STOP LIGHT (12V 21/5W) 1
10 61103357000 RUBBER, FR. FENDER MOUNTING 3
11 80202KVE900 COLLAR, LICENSE LIGHT 2
12 80203KVE900 RUBBER, LICENSE LIGHT 1
13 90563355000 WASHER, WHEEL, 6MM 2
14 9390124480 SCREW, TAPPING, 4X16 2
15 9390124580 SCREW, TAPPING, 4X20 2
16 9405005000 NUT, FLANGE, 5MM 2
17 9405006000 NUT, FLANGE, 6MM 2
