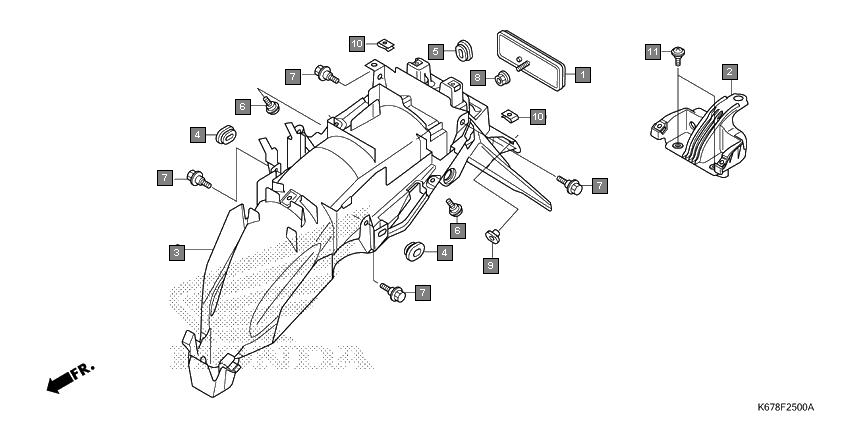

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33741KPL902 | REFLECTOR, REFLEX | 1 |
2 | 77235K67900 | STAY, TAILLIGHT | 1 |
3 | 80101K67A00 | FENDER, RR. | 1 |
4 | 83551GE2000 | GROMMET, AIR CLEANER CASE | 2 |
5 | 83551KWS900 | GROMMET, TAILLIGHT | 1 |
6 | 90101GE0000 | SCREW, HINGE PATCH | 2 |
7 | 90111162000 | BOLT, FLANGE, 6MM | 4 |
8 | 90301KWN901 | NUT, U, 5MM | 1 |
9 | 90311KTE910 | NUT, RR. FENDER | 2 |
10 | 90320GC3000 | NUT, SPRING, 5MM | 2 |
11 | 91509GE2760 | SCREW, PAN, 5X11.5 | 2 |
