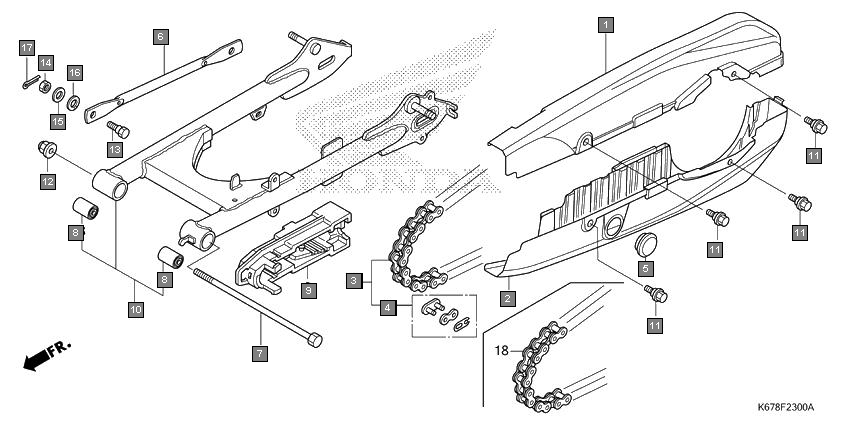

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 40510KTED80 | CASE, DRIVE CHAIN UPPER | 1 |
2 | 40520KTED80 | CASE, DRIVE CHAIN LOWER | 1 |
3 | 40545KWV010 | CAP, CHAIN CASE PEEP HOLE | 1 |
4 | 43431KTE910 | ARM, RR. BRAKE STOPPER | 1 |
5 | 52101KTC900 | BOLT, SWINGARM PIVOT | 1 |
6 | 52147KW7900 | BUSH, SWINGARM PIVOT RUBBER | 2 |
7 | 52170K67900 | SLIDER, CHAIN | 1 |
8 | 52200KTEDA0 | SWINGARM SUB ASSY., RR. | 1 |
9 | 52200KTED80 | SWINGARM SUB ASSY., RR. | 1 |
10 | 90111162000 | BOLT, FLANGE, 6MM | 4 |
11 | 90306KTE911 | NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) | 1 |
12 | 9281210000 | BOLT A, STOPPER ARM | 1 |
13 | 94001080000S | NUT, HEX., 8MM | 1 |
14 | 9410108000 | WASHER, PLAIN, 8MM | 1 |
15 | 9411110000 | WASHER, SPRING, 10MM | 1 |
16 | 9420120150 | PIN, SPLIT, 2.0X15 | 1 |
17 | 40530KTED81 | CHAIN, DRIVE(DID420ADV-116LE) (DAIDO) | 1 |
18 | 40530KTED92 | CHAIN, DRIVE(LGB R420OR-116LE)(LGB) | 1 |
