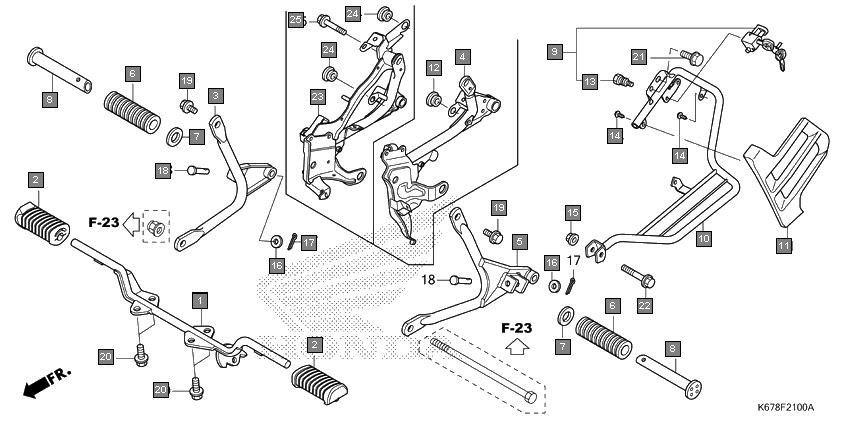

Motorcycles CB Shine SP CBF125MJ/MK Frame Step
Ref.No. Part No. Description Oty
1 50610KTED00 BAR COMP., STEP 1
2 50610KTED20 BAR COMP., STEP 1
3 50660KTED00 RUBBER, STEP 2
4 50701K67900 BRACKET COMP., R. PILLION STEP 1
5 50701K67920 BRACKET COMP., R. PILLION STEP 1
6 50702KTE910 BRACKET COMP., L. PILLION STEP 1
7 50710KTE910 RUBBER, PILLION STEP 2
8 50712405000 WASHER, PILLION STEP 2
9 50715405000 BAR, PILLION STEP 2
10 50730K14900 HOLDER SET, HELMET 1
11 51103KTED80 GUARD A, SARI 1
12 51104K14900 GUARD B, SARI 1
13 83551376000 GROMMET, SIDE COVER 1
14 90107449000 BOLT, HELMET HOLDER SETTING 1
15 9390335220 SCREW, TAPPING, 5X12 2
16 9405008000 NUT, FLANGE, 8MM 1
17 9410106000 WASHER, PLAIN, 6MM 2
18 9420116120 PIN, SPLIT, 1.6X12 2
19 90131KWPF00 PIN, PILLION STEP 2
20 957010801600 BOLT, FLANGE, 8X16 2
21 957010801600 BOLT, FLANGE, 8X16 1
22 957010802000 BOLT, FLANGE, 8X20 4
23 957010802007 BOLT, FLANGE, 8X20 2
24 957010803500 BOLT, FLANGE, 8X35 1
25 50701K67A30 BRACKET COMP., R. PILLION STEP 1
26 83551376000 GROMMET, SIDE COVER 2
27 957010804500 BOLT, FLANGE, 8X45 1
