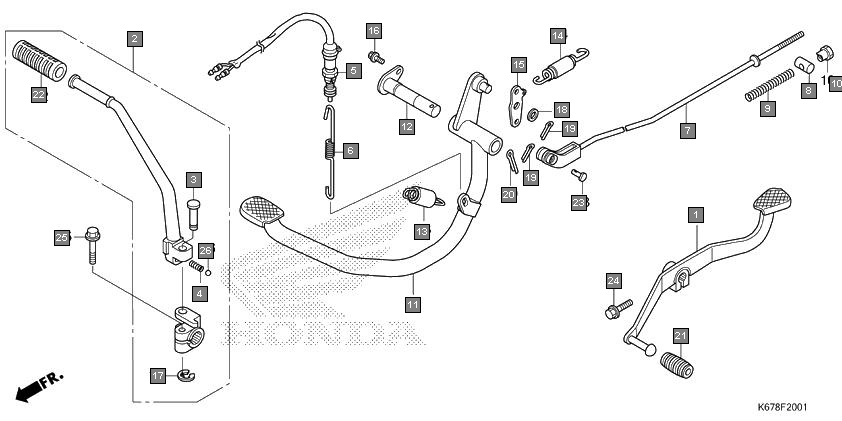

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 24701KTE910 | PEDAL, GEAR CHANGE | 1 |
| 2 | 28300KTED80 | ARM ASSY., KICK STARTER | 1 |
| 3 | 28321KTE910 | PIN, KICK STARTER | 1 |
| 4 | 28333KANT40 | SPRING, KICK STARTER STOPPER | 1 |
| 5 | 35350KTE651 | SWITCH ASSY., RR. STOP | 1 |
| 6 | 35357KTE650 | SPRING, STOP SWITCH | 1 |
| 7 | 43451KTE670 | ROD COMP., RR. BRAKE | 1 |
| 8 | 43455KSP900 | JOINT, BRAKE ARM | 1 |
| 9 | 43456KSP900 | SPRING, BRAKE ROD | 1 |
| 10 | 43459KSP900 | NUT, BRAKE ROD ADJUSTING | 1 |
| 11 | 46500KTE670 | PEDAL COMP., BRAKE | 1 |
| 12 | 46513KTE670 | SHAFT COMP., BRAKE PEDAL PIVOT | 1 |
| 13 | 46514KTE670 | SPRING SET, BRAKE PEDAL | 1 |
| 14 | 46613KTE670 | SPRING SET, DELAY | 1 |
| 15 | 47651KTE670 | EQUALIZER(CBS) | 1 |
| 16 | 90104MEA740 | BOLT, FLANGE,(DR)6X12 | 1 |
| 17 | 90601473003 | E-RING, 8MM | 1 |
| 18 | 9410110000 | WASHER, PLAIN, 10MM | 1 |
| 19 | 9420120150 | PIN, SPLIT, 2.0X15 | 2 |
| 20 | 9420130300 | PIN, SPLIT, 3.0X30 | 1 |
| 21 | 9501140000 | RUBBER, CHANGE PEDAL | 1 |
| 22 | 9501151000 | RUBBER A, KICK STARTER | 1 |
| 23 | 9501553000 | PIN C, JOINT | 1 |
| 24 | 957010602000 | BOLT, FLANGE, 6X20 | 1 |
| 25 | 957010802500 | BOLT, FLANGE, 8X25 | 1 |
| 26 | 9621108000 | BALL, STEEL, #8(1/4) | 1 |
