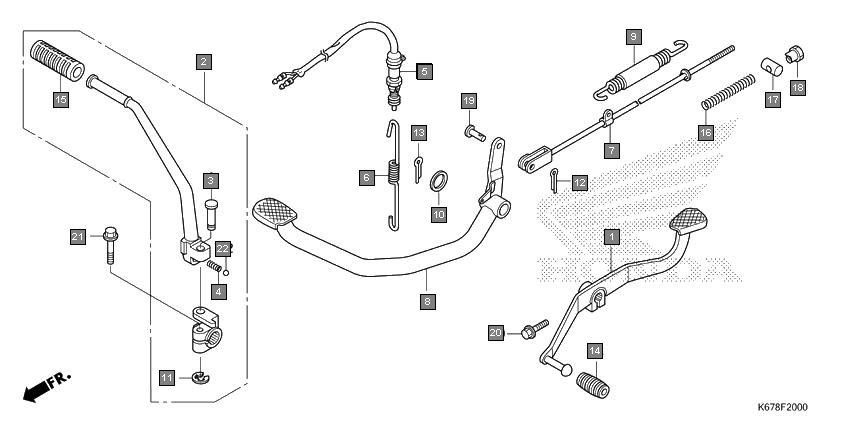

Motorcycles CB Shine SP CBF125MJ/MK Frame Pedal/kick starter arm(id,2id)
Ref.No. Part No. Description Oty
1 24701KTE910 PEDAL, GEAR CHANGE 1
2 28300KTED80 ARM ASSY., KICK STARTER 1
3 28321KTE910 PIN, KICK STARTER 1
4 28333KANT40 SPRING, KICK STARTER STOPPER 1
5 35350KTE651 SWITCH ASSY., RR. STOP 1
6 35357KTE650 SPRING, STOP SWITCH 1
7 43451KTE910 ROD COMP., RR. BRAKE 1
8 46500KTE650 PEDAL COMP., BRAKE 1
9 46510KSP900 SPRING SET, BRAKE PEDAL 1
10 90521028000 WASHER, 17X22 1
11 90601473003 E-RING, 8MM 1
12 9420120120 PIN, SPLIT, 2.0X12 1
13 9420130300 PIN, SPLIT, 3.0X30 1
14 9501140000 RUBBER, CHANGE PEDAL 1
15 9501151000 RUBBER A, KICK STARTER 1
16 9501473100 SPRING A, BRAKE ROD 1
17 9501532001 JOINT B, BRAKE ARM 1
18 9501542000 NUT B, BRAKE ROD ADJUSTING 1
19 9501553000 PIN C, JOINT 1
20 957010602000 BOLT, FLANGE, 6X20 1
21 957010802500 BOLT, FLANGE, 8X25 1
22 9621108000 BALL, STEEL, #8(1/4) 1
