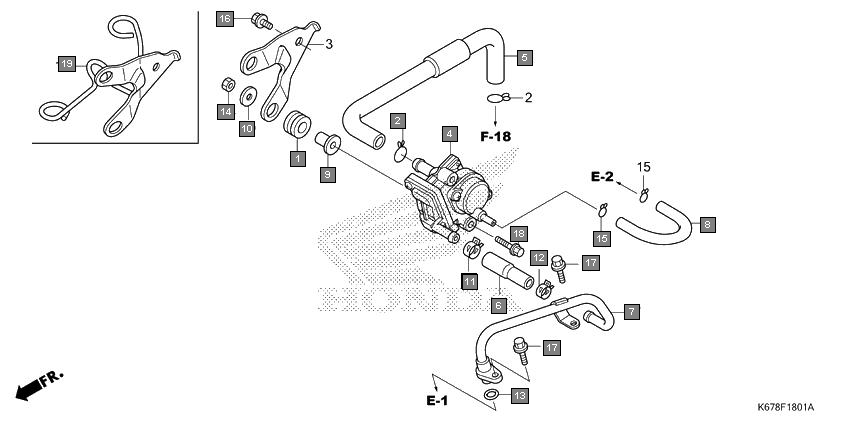

Motorcycles CB Shine SP CBF125MJ/MK Frame Air suction valve
Ref.No. Part No. Description Oty
1 11344MB0000 GROMMET A, RR. COVER(8X16X6.6) 2
2 17316KWPE00 CLIP, BREATHER TUBE 2
3 18600KTE912 VALVE ASSY., AIR SUCTION 1
4 18601KTE910 TUBE A, AIR SUCTION VALVE 1
5 18602KTE910 TUBE B, AIR SUCTION VALVE 1
6 18640KTE600 PIPE COMP., AIR FEED 1
7 18655KTE910 TUBE, AIR SUCTION VALVE(PB) 1
8 83119GT4000 COLLAR, METER 2
9 90450ZA0000 WASHER, PLAIN, 6X16 2
10 90678K14600 CLIP, HOSE 1
11 90682KWPF00 CLAMP, CANISTER HOSE 1
12 91309MJ0003 O-RING, 9.8X2.8(ARAI) 1
13 94001060000S NUT, HEX., 6MM 2
14 90651KWPF00 CLIP, TUBE(B7) 2
15 957010601200 BOLT, FLANGE, 6X12 1
16 957010601600 BOLT, FLANGE, 6X16 2
17 960010602500 BOLT, FLANGE, 6X25 2
18 17365KTED00 STAY, AIR SUCTION VALVE 1
