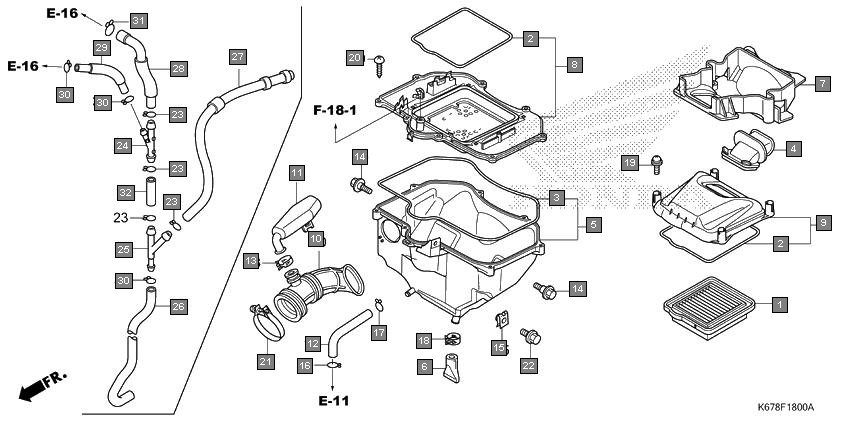

Motorcycles CB Shine SP CBF125MJ/MK Frame Air cleaner
Ref.No. Part No. Description Oty
1 17211KTE651 ELEMENT COMP., AIR CLEANER 1
2 17214KTE910 SEAL B, AIR CLEANER 2
3 17215KSP900 SEAL A, AIR CLEANER 1
4 17219K67930 DUCT, AIR CLEANER 1
5 17225KTE651 CASE SUB ASSY., AIR CLEANER 1
6 17227KTE910 TUBE, VINYL, 11X15X40 1
7 17234KTE910 COVER, AIR CLEANER DUCT 1
8 17235KTED00 HOLDER SUB ASSY., AIR CLEANER 1
9 17245KTE651 COVER SUB ASSY., AIR CLEANER 1
10 17253K67930 TUBE, AIR CLEANER CONNECTING 1
11 17311KTE911 RESONATOR 1
12 17371KTED00 TUBE, BREATHER 1
13 19509GE2003 CLAMP, TUBE(D19) 1
14 90111162000 BOLT, FLANGE, 6MM 2
15 90320747000 NUT, SPRING, 6MM 1
16 90651KM9000 CLIP, TUBE(B14) 1
17 90651MK3780 CLIP, TUBE(B12.5) 1
18 91406KFN850 CLAMP, TUBE(D14.5) 1
19 938930501600 SCREW-WASHER, 5X16 4
20 9390325480 SCREW, TAPPING, 5X20 8
21 9501854251 BAND, AIR CLEANER CONNECTING TUBE(54) 1
22 957010601000 BOLT, FLANGE, 6X10 1
23 16163GHB600 CLIP, TUBE 4
24 16180K43900 JOINT A, 3WAY 1
25 16181K43900 JOINT B, 3WAY 1
26 16197KTED00 TUBE, DRAIN 1
27 16198KTED00 TUBE B, AIR VENT 1
28 16199KTED00 TUBE A, AIR VENT 1
29 16956KTED00 TUBE C, AIR VENT 1
30 9500202089 CLIP, TUBE(B8) 3
31 9500202100 CLIP, TUBE(B10) 1
32 950055005050 TUBE, 5X50(95005-50001-50M) 1
