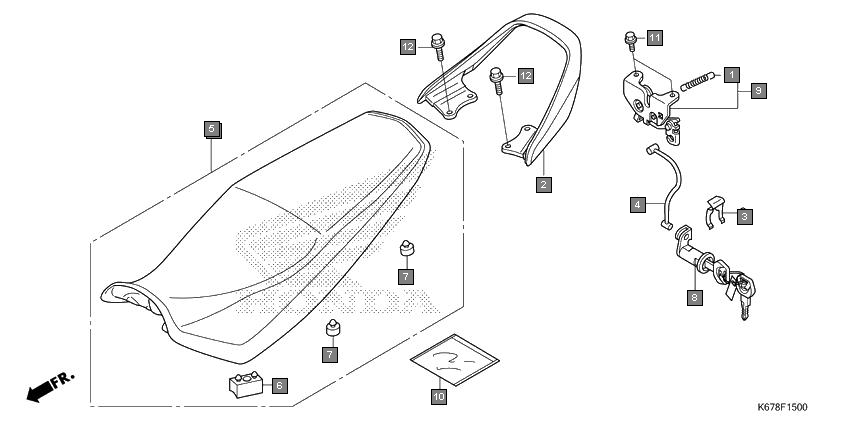

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 16574ZG8300 | SPRING, LEVER | 1 |
2 | 50400K67900 | GRIP, RR. | 1 |
3 | 75581GN8920 | SPRING, LOCK KEY SETTING | 1 |
4 | 77156KTE910 | CABLE, SEAT LOCK | 1 |
5 | 77200K67A00ZA | SEAT ASSY., DOUBLE *TYPE1* | 1 |
6 | 77200K67A10ZA | SEAT ASSY., DOUBLE *TYPE1* | 1 |
7 | 77204KCC900 | RUBBER A, SEAT SETTING | 2 |
8 | 77206KTE910 | RUBBER, SEAT SETTING | 6 |
9 | 77225KTE911 | LOCK ASSY., SEAT | 1 |
10 | 77235KTE910 | CATCH COMP., SEAT | 1 |
11 | 77251KPL900 | BAG, SERVICE BOOK | 1 |
12 | 957010601200 | BOLT, FLANGE, 6X12 | 2 |
13 | 957010802000 | BOLT, FLANGE, 8X20 | 4 |
