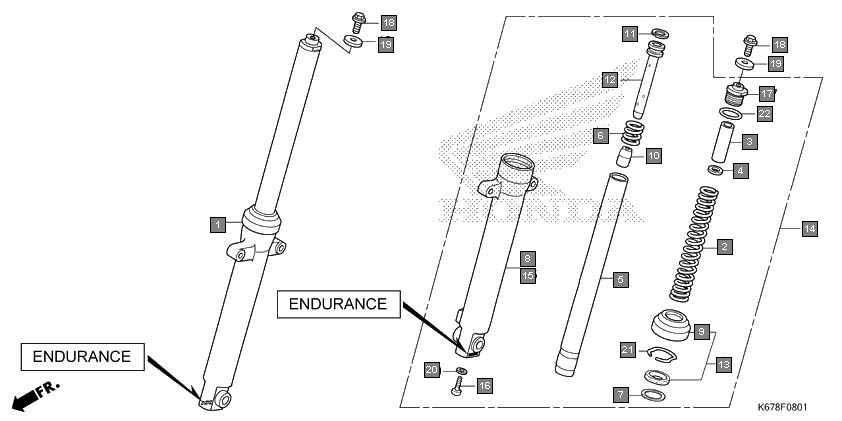

Motorcycles CB Shine SP CBF125MJ/MK Frame Front fork(endurance)(drum brake)
Ref.No. Part No. Description Oty
1 51400KTED81 FORK ASSY., R. FR.(ENDURANCE) 1
2 51401KTE602 SPRING, FR. FORK(ETPL) 2
3 51403KTED81 COLLAR, SPRING(ENDURANCE) 2
4 51410KTE602 PIPE COMP., FR. FORK(ETPL) 2
5 51412K23902 SPRING, REBOUND 2
6 51413K63D11 RING, BACK UP 2
7 51420KTE602 CASE, R. FR. BOTTOM(ETPL) 1
8 51425KTE602 SEAL, DUST(ETPL) 2
9 51432K23902 PIECE, OIL LOCK 2
10 51437K23902 RING, PISTON 2
11 51440KTE602 PIPE, SEAT(ETPL) 2
12 51490KTE602 SEAL SET, FR. FORK(ETPL) 2
13 51500KTED81 FORK ASSY., L. FR.(ENDURANCE) 1
14 51520KTE602 CASE, L. FR. BOTTOM(ETPL) 1
15 90116K23902 BOLT, SOCKET, 8MM 2
16 90123K23902 BOLT A, FR. FORK 2
17 90123KRM860 BOLT, FR. FORK 2
18 90521KSP900 WASHER, 10.3MM 2
19 90544K23902 WASHER, SPECIAL, 8MM 2
20 90651K23902 RING, OIL SEAL STOP 2
21 91351K23902 O-RING 2
