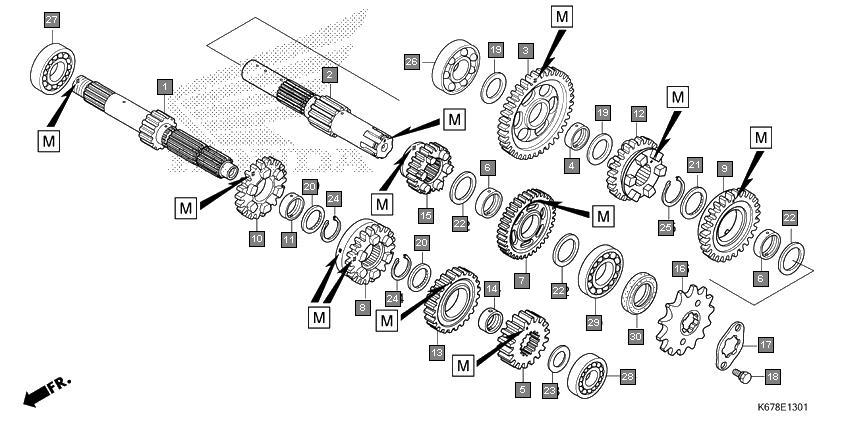

Motorcycles CB Shine SP CBF125MJ/MK Engine Transmission(cbf125mh/j) (musashi)
Ref.No. Part No. Description Oty
1 23210K67901 MAINSHAFT COMP., TRANSMISSION (12T) 1
2 23220KSP911 COUNTERSHAFT COMP............. 1
3 23421K67901 GEAR, COUNTERSHAFT FIRST(41T). 1
4 23427KRM840 BUSH, 17X20.5X8.0 1
5 23431K67901 GEAR, MAINSHAFT SECOND(18T)... 1
6 23432KRM840 BUSH, 20MM 2
7 23441K67901 GEAR, COUNTERSHAFT SECOND(35T) 1
8 23451K67901 GEAR, MAINSHAFT THIRD(20T).... 1
9 23461K67901 GEAR, COUNTERSHAFT THIRD(27T). 1
10 23471K67901 GEAR, MAINSHAFT FOURTH(25T)... 1
11 23472KSP910 BUSH, 17MM 1
12 23481K67901 GEAR, COUNTERSHAFT FOURTH(28T) 1
13 23491K67901 GEAR, MAINSHAFT FIFTH(24T).... 1
14 23492KSP910 COLLAR, SPLINE, 17X20X11 1
15 23501K67901 GEAR, COUNTERSHAFT FIFTH(23T). 1
16 23801KTE910 SPROCKET, DRIVE(14T) 1
17 23811KR3600 PLATE A2, FIXING 1
18 90084041000 BOLT, DRIVE SPROCKET FIXING 2
19 90452GB4770 WASHER, THRUST, 17MM 2
20 90452KRM840 WASHER, SPLINE, 17X23X1.6 2
21 90453KRM840 WASHER, SPLINE, 20MM 1
22 90454107000 WASHER, THRUST, 20MM 3
23 90456KRM840 WASHER, THRUST, 12MM 1
24 90601KRM840 CIRCLIP, 17MM 2
25 90605200000 SET RING, 20MM 1
26 91003KSP910 BEARING, RADIAL BALL, 17X42X12 1
27 91004KTN900 BEARING, RADIAL BALL, 17X40X12 1
28 91005KTN900 BEARING, RADIAL BALL, 12X32X10 1
29 91006KTN900 BEARING, RADIAL BALL, 20X47X14 1
30 91216KSP911 OIL SEAL, 20X34X7(ARAI) 1
