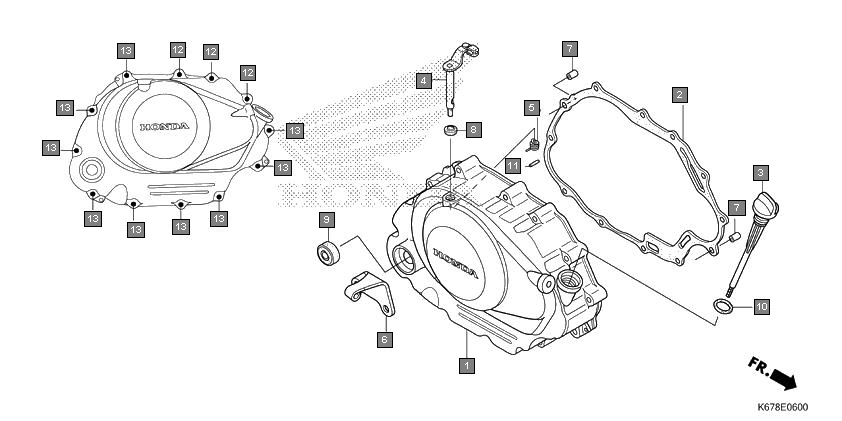

Motorcycles CB Shine SP CBF125MJ/MK Engine Right crankcase cover
Ref.No. Part No. Description Oty
1 11330KTEA00 COVER COMP., R. CRANKCASE 1
2 11393KWK900 GASKET, R. CRANKCASE COVER 1
3 15651KTE910 GAUGE, OIL LEVEL 1
4 22810KRM840 LEVER COMP., CLUTCH 1
5 22815428000 SPRING, CLUTCH LEVER 1
6 22821KTED00 RECEIVER, CLUTCH CABLE 1
7 90702KRM840 DOWEL PIN, 8X14 2
8 91202KSP911 OIL SEAL, 12X18X4 1
9 91204KSP911 OIL SEAL, 16X28X7 1
10 91307KRM840 O-RING, 18X3 1
11 9430530102 PIN, SPRING, 3X10 1
12 960010603000 BOLT, FLANGE, 6X30 3
13 960010604000 BOLT, FLANGE, 6X40 9
