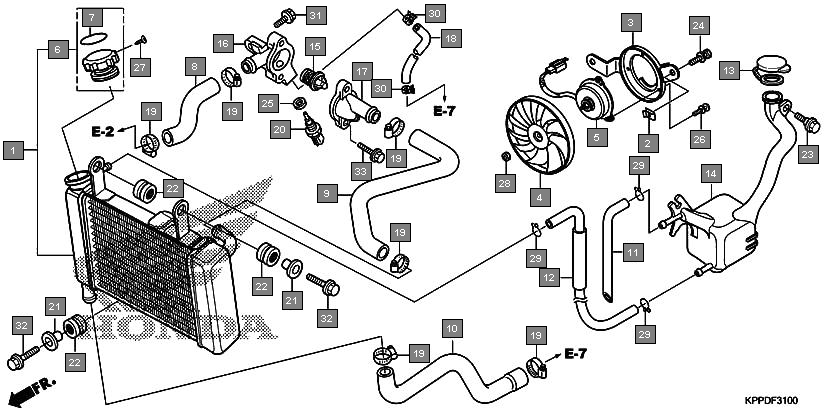

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 19010KPPT01 | RADIATOR COMP. | 1 |
| 2 | 19014KEA003 | NUT, SETTING(6MM) | 1 |
| 3 | 19015KPPT01 | SHROUD COMP. | 1 |
| 4 | 19020KPPT01 | FAN COMP., COOLING | 1 |
| 5 | 19030KPPT01 | MOTOR COMP., FAN | 1 |
| 6 | 19045KPPT01 | CAP COMP., RADIATOR(T.RAD) | 1 |
| 7 | 19055KPPT01 | SEAL, RADIATOR CAP | 1 |
| 8 | 19061KPPT00 | HOSE, THERMOSTAT | 1 |
| 9 | 19062KPPT00 | HOSE, RADIATOR UPPER | 1 |
| 10 | 19063KTYD30 | HOSE, RADIATOR LOWER | 1 |
| 11 | 19104KPP930 | TUBE, RESERVE TANK BREATHER | 1 |
| 12 | 19105KTYH50 | TUBE, RADIATOR BREATHER | 1 |
| 13 | 19109KPC640 | CAP, RESERVE TANK | 1 |
| 14 | 19110KPP930 | TANK, RADIATOR RESERVE | 1 |
| 15 | 19300GEE003 | THERMOSTAT | 1 |
| 16 | 19311KTYD30 | CASE COMP., THERMOSTAT | 1 |
| 17 | 19315KGH900 | COVER, THERMOSTAT | 1 |
| 18 | 19320KPPT00 | TUBE A, THERMOSTAT CASE | 1 |
| 19 | 19506KGH900 | CLAMP, WATER HOSE | 6 |
| 20 | 37870KRJ901 | SENSOR ASSY., WATER TEMP | 1 |
| 21 | 61102KTYD30 | COLLAR, RADIATOR MOUNTING | 2 |
| 22 | 61304415000 | RUBBER, HEADLIGHT CASE MOUNTING | 3 |
| 23 | 90111162000 | BOLT, FLANGE, 6MM | 1 |
| 24 | 90120GHB601 | BOLT-WASHER, 6X12 | 2 |
| 25 | 90454MC7000 | WASHER, SPECIAL, 12MM | 1 |
| 26 | 938910400607 | SCREW-WASHER, 4X6 | 3 |
| 27 | 9390122020 | SCREW, TAPPING, 3X6 | 1 |
| 28 | 90315MFL003 | NUT, FLANGE, 3MM | 1 |
| 29 | 9500202100 | CLIP, TUBE(B10) | 3 |
| 30 | 950024105008 | CLAMP, TUBE(D10.5) | 2 |
| 31 | 957010601600 | BOLT, FLANGE, 6X16 | 1 |
| 32 | 957020601600 | BOLT, FLANGE, 6X16 | 1 |
| 33 | 957010602200 | BOLT, FLANGE, 6X22 | 2 |
| 34 | 957020602200 | BOLT, FLANGE, 6X22 | 2 |
| 35 | 960010602500 | BOLT, FLANGE, 6X25 | 2 |
