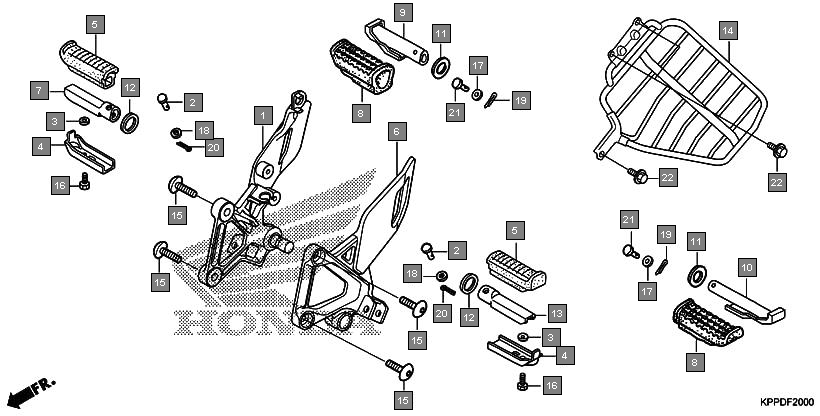

Motorcycles CBR150R CBR150RC Frame Step
Ref.No. Part No. Description Oty
1 50600KPPN00 HOLDER, R. STEP 1
2 50603KSP900 PIN, STEP BAR JOINT 2
3 50618KE8000 COLLAR, 6.5X11X3 2
4 50619KSP900 PLATE, STEP LOWER 2
5 50661KFN850 RUBBER, MAIN STEP 2
6 50700KPPN00 HOLDER, L. STEP 1
7 50701KSP900 BAR, R. MAIN STEP 1
8 50710KET600 RUBBER, PILLION STEP 2
9 50711KET600 BAR, R. PILLION STEP 1
10 50712KET600 BAR, L. PILLION STEP 1
11 50715KE8000 PLATE, PILLION STEP SIDE 2
12 50715KSP910 PLATE, PILLION STEP SIDE 2
13 50801KSP900 BAR, L. MAIN STEP 1
14 51103KPPN00 GUARD, SARI 1
15 90128KET900 BOLT, SOCKET, 8X22 4
16 92101060120G BOLT, HEX., 6X12 2
17 9410106000 WASHER, PLAIN, 6MM 2
18 9410208000 WASHER, PLAIN, 8MM 2
19 9420116150 PIN, SPLIT, 1.6X15 2
20 9420120150 PIN, SPLIT, 2.0X15 2
21 9501581000 PIN A, PILLION STEP 2
22 957010801407 BOLT, FLANGE, 8X14 3
23 957020801407 BOLT, FLANGE, 8X14 3
