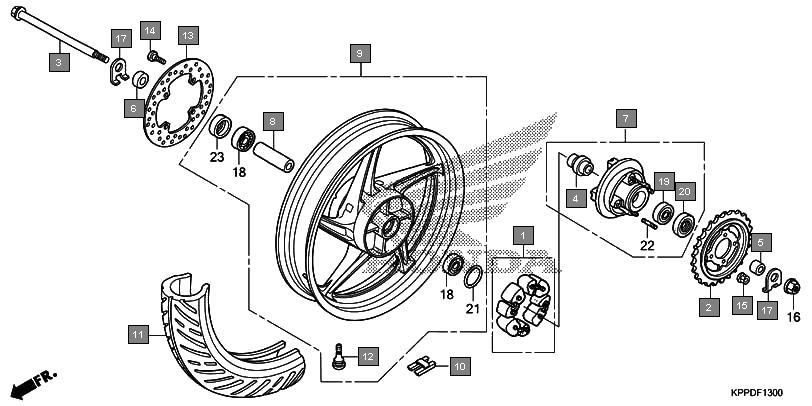

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06410KSP900 | DAMPER SET, WHEEL | 1 |
| 2 | 41200KPPN00 | SPROCKET COMP., FINAL DRIVEN (43T) | 1 |
| 3 | 42301KPPT00 | AXLE, RR. WHEEL | 1 |
| 4 | 42303KPPT00 | SLEEVE, RR. WHEEL | 1 |
| 5 | 42311KPPT00 | COLLAR, L. RR. WHEEL SIDE | 1 |
| 6 | 42313KPPT00 | COLLAR, R. RR. WHEEL SIDE | 1 |
| 7 | 42615KPPN00ZA | FLANGE SUB ASSY., DRIVEN *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 8 | 42620KPPT00 | COLLAR, RR. AXLE DISTANCE | 1 |
| 9 | 42650KPPN00ZA | WHEEL SUB ASSY., RR. | 1 |
| 10 | 42704MERD00 | WEIGHT, BALANCE(10G) | 0 |
| 11 | 42705MERD00 | WEIGHT, BALANCE(20G) | 0 |
| 12 | 42706MERD00 | WEIGHT, BALANCE(30G) | 0 |
| 13 | 42711KPPN01 | TIRE, RR.(MRF)(130/70-17 M/C 62P) | 1 |
| 14 | 42711KPPN02 | TIRE, RR.(TVS)(130/70-17 M/C 62P) | 1 |
| 15 | 42753KWF901 | VALVE, RIM(TRITON) | 1 |
| 16 | 43251KSPB01ZA | DISK, RR. BRAKE(YUTAKA) *TYPEA* | 1 |
| 17 | 90105KSP870 | BOLT, DISK, 8X24 | 4 |
| 18 | 90304GE8003 | NUT, U, 10MM(FUSE RASHI) | 4 |
| 19 | 90304KST942 | NUT, FLANGE, 10MM (LEO FASTENERS) | 4 |
| 20 | 90304KTE911 | NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) | 4 |
| 21 | 90305GE8003 | NUT, U, 14MM | 1 |
| 22 | 90305KVN901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 |
| 23 | 90305KVN902 | NUT, FLANGE, 14MM(LEO FASTENERS) | 1 |
| 24 | 90559KPPT00 | WASHER, RR. AXLE | 2 |
| 25 | 91051KPPN01 | BEARING, RADIAL BALL, 6302U (FAG) | 2 |
| 26 | 91051KPPT01 | BEARING, RADIAL BALL, 6302U (SKF) | 2 |
| 27 | 91054KPPN01 | BEARING, RADIAL BALL, 6004UU (FAG) | 1 |
| 28 | 91054MW5003 | BEARING, RADIAL BALL, 6004(UU) | 1 |
| 29 | 91257230003 | OIL SEAL, 28X42X7(ARAI) | 1 |
| 30 | 91257230005 | OIL SEAL, 28X42X7(NOK) | 1 |
| 31 | 91352KSP900 | O-RING, 51X2 | 1 |
| 32 | 92915100250E | BOLT, STUD, 10X25 | 4 |
