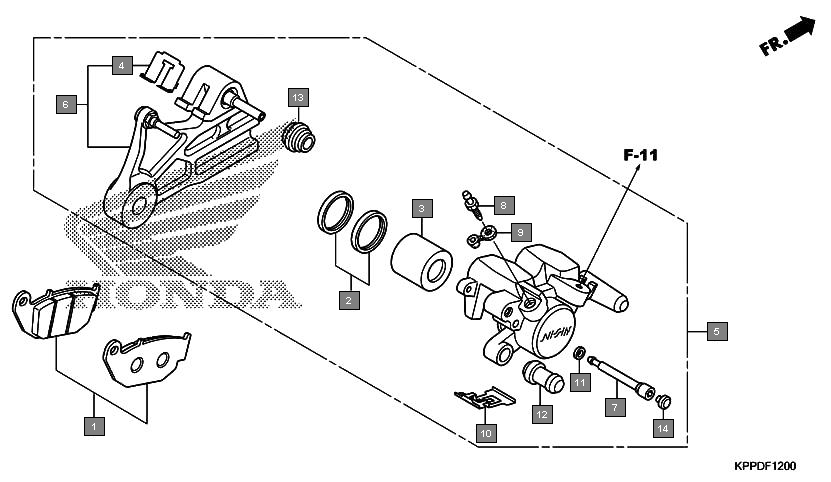

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06435KPPT01 | PAD SET, RR. | 1 |
2 | 06451MA7405 | SEAL SET, PISTON | 1 |
3 | 43107MA7006 | PISTON | 1 |
4 | 43112KSPB01 | RETAINER | 1 |
5 | 43150KPPT01 | CALIPER SUB ASSY., RR.(NISSIN) | 1 |
6 | 43190KSPB01 | BRACKET SUB ASSY., RR. | 1 |
7 | 43215KGH901 | PIN, HANGER | 1 |
8 | 43352568003 | SCREW, BLEEDER(NISSIN) | 1 |
9 | 43353461771 | CAP, BLEEDER | 1 |
10 | 45108ML7922 | SPRING, PAD(NISSIN) | 1 |
11 | 45111MAJG41 | RING, STOPPER | 1 |
12 | 45132166016 | BOOT, PIN BUSH(NISSIN) | 1 |
13 | 45203MCC006 | PLUG, PIN | 1 |
14 | 45133MA3006 | BOOT B | 1 |
