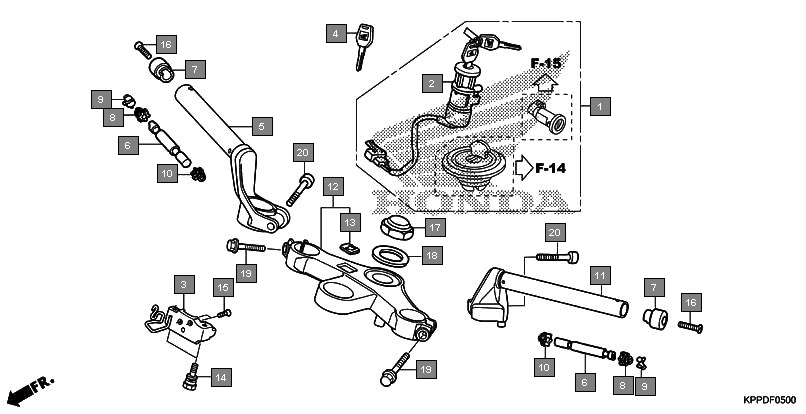

Motorcycles CBR150R CBR150RC Frame Handle pipe/top bridge
Ref.No. Part No. Description Oty
1 35010KPPN00 KEY SET 1
2 35100KPPN01 SWITCH ASSY., COMBINATION & LOCK 1
3 35105KPPT00 STAY COMP., COMBINATION SWITCH 1
4 35121KPPN01 KEY, BLANK 1
5 53100KPPT00 PIPE COMP., R. STEERING HANDLE 1
6 53104KPP900 WEIGHT B, HANDLE 2
7 53105KPP860 WEIGHT A, STEERING HANDLE 2
8 53107MJ0000 RUBBER B, HANDLE WEIGHT 2
9 53108MJ0000 RING, HANDLE WEIGHT SNAP 2
10 53109MV4000 RUBBER B, HANDLE WEIGHT 2
11 53150KPPT00 PIPE COMP., L. STEERING HANDLE 1
12 53300KPPN00ZA BRIDGE COMP., FORK TOP *NH105* MAT BLACK(#15-#20) 1
13 86150KWS601 EMBLEM, PRODUCT(SJS) 1
14 90107KPPN00 BOLT, BREAK OFF 2
15 90164028000 SCREW, U-LOCK FLAT, 6X12 2
16 90191KPH970 SCREW, OVAL, 6X65 2
17 90304KSP900 NUT, STEERING STEM 1
18 90503KSP900 WASHER, STEERING STEM 1
19 957010804000 BOLT, FLANGE, 8X40 2
20 957020804000 BOLT, FLANGE, 8X40 2
21 966000803200 BOLT, SOCKET, 8X32 2
