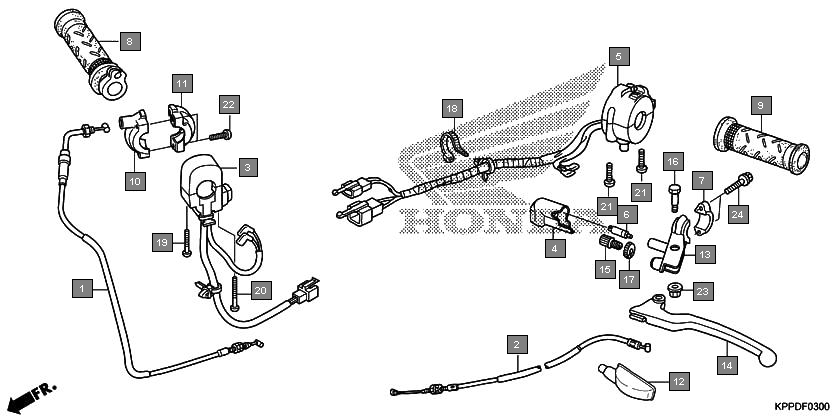

Motorcycles CBR150R CBR150RC Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 17910KPPT01 CABLE COMP., THROTTLE 1
2 22870KPPT00 CABLE COMP., CLUTCH 1
3 35150KPPN01 SWITCH ASSY., STARTER 1
4 35152KPPT00 COVER, CLUTCH SWITCH 1
5 35200KPPN01 SWITCH ASSY., WINKER 1
6 35330KWS901 SWITCH ASSY., CLUTCH 1
7 45517166006 HOLDER, MASTER CYLINDER 1
8 53140KPH970 GRIP COMP., THROTTLE 1
9 53166KFLD20 GRIP, L. HANDLE 1
10 53167KWF900 HOUSING, UPPER THROTTLE 1
11 53168KTE910 HOUSING, UNDER THROTTLE 1
12 53172402700 COVER, L. HANDLE LEVER 1
13 53172KPPN00 BRACKET, L. HANDLE LEVER 1
14 53178KPPN00 LEVER, L. STEERING HANDLE 1
15 53192268000 BOLT, WIRE ADJUSTING 1
16 90114KGH900 BOLT, HANDLE LEVER PIVOT 1
17 90321315670 NUT, FIXING 1
18 90652KT1771 BAND, WIRE(BLACK) 1
19 93500040320G SCREW, PAN, 4X32 1
20 93500040450G SCREW, PAN, 4X45 1
21 93500050200G SCREW, PAN, 5X20 2
22 93500050250G SCREW, PAN, 5X25 2
23 9405006000 NUT, FLANGE, 6MM 1
24 960010602207 BOLT, FLANGE, 6X22 2
