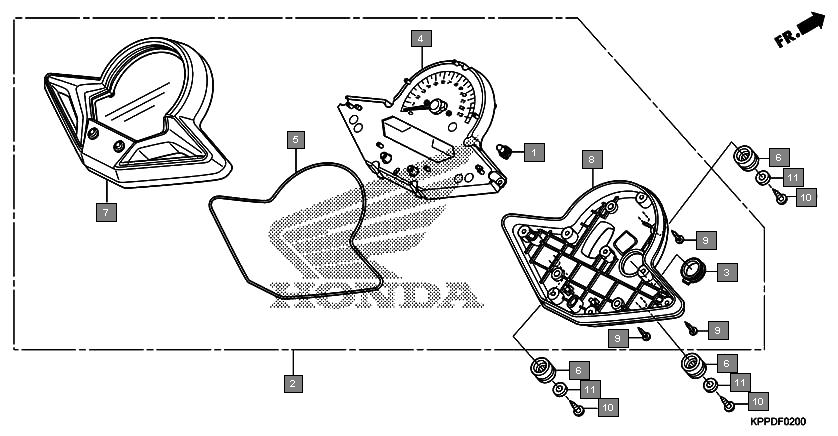

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 37100KPPN02 | METER ASSY., COMBINATION(KPH | 1 |
2 | 37110KPPN02 | METER ASSY., SPEED & TACHO & FUEL | 1 |
3 | 35505KPPT01 | BULB & SOCKET ASSY.(12V 1.7W) | 1 |
4 | 37105KPPT01 | CAP | 1 |
5 | 37180KPPT01 | GASKET | 1 |
6 | 37244KVK900 | RUBBER, METER MOUNTING | 3 |
7 | 37610KPPT01 | CASE ASSY., UPPER | 1 |
8 | 37620KPPT01 | CASE ASSY., UNDER | 1 |
9 | 9390322480 | SCREW, TAPPING, 3X16 | 8 |
10 | 9391325380 | SCREW, TAPPING, 5X14(PO) | 3 |
11 | 9410305700 | WASHER, PLAIN, 5MM | 3 |
