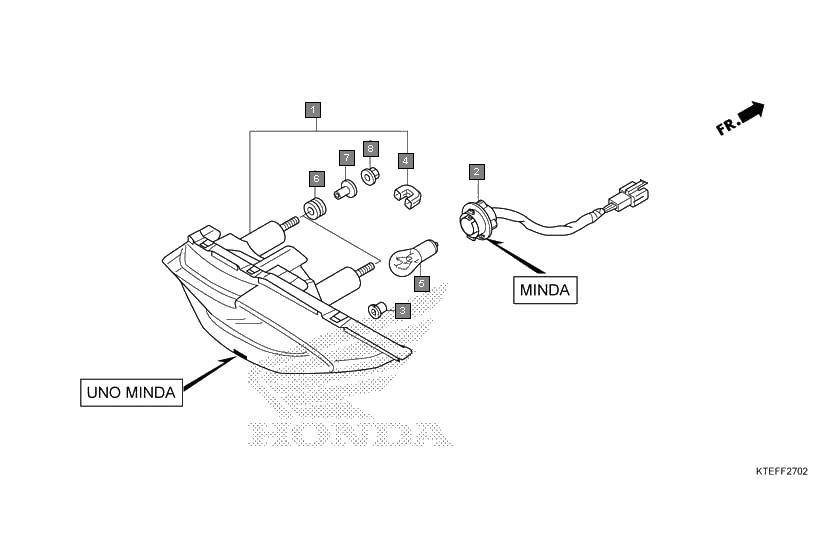

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33703KTED01 | TAILLIGHT COMP. | 1 |
2 | 33705KTED01 | SOCKET COMP.(MINDA) | 1 |
3 | 33706KTE910 | GROMMET, TAILLIGHT | 1 |
4 | 33706KTED01 | PIPE, CP | 1 |
5 | 34907KVN901 | BULB, TAIL & STOP LIGHT (12V 21/5W) | 1 |
6 | 61103357000 | RUBBER, FR. FENDER MOUNTING | 2 |
7 | 61104KM7910 | COLLAR, FAIRING SETTING | 2 |
8 | 9405005000 | NUT, FLANGE, 5MM | 2 |
