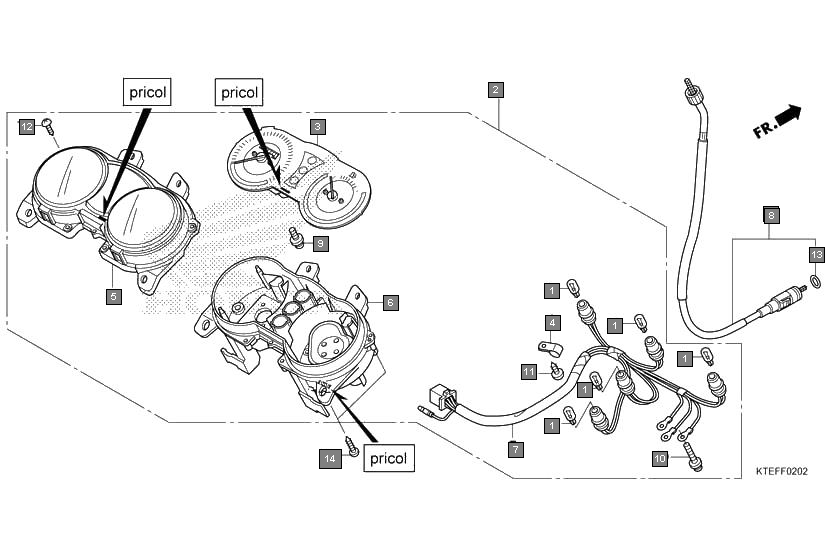

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 34908KVE900 | BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) | 5 |
2 | 37100KTED82 | SPEEDOMETER ASSY.(KPH)(PRICOL) | 1 |
3 | 37210KTED82 | SPEEDOMETER COMP.(KPH) | 1 |
4 | 37215KTED02 | CLAMP(PRICOL) | 1 |
5 | 37310KTED02 | LENS ASSY.(PRICOL) | 1 |
6 | 37610KTED02 | CASE ASSY., UNDER(PRICOL) | 1 |
7 | 37619KTED02 | SOCKET COMP.(PRICOL) | 1 |
8 | 90101KTED02 | SCREW-WASHER, SPECIAL(PRICOL) | 2 |
9 | 90102KTED02 | SCREW-WASHER, 3X22 | 3 |
10 | 90103KTED02 | SCREW, TAPPING, 4X14 | 1 |
11 | 90104KTED02 | SCREW, TAPPING, 3X14 | 4 |
12 | 91352671003 | O-RING, 8.5X1.5(ARAI) | 1 |
13 | 9390335310 | SCREW, TAPPING, 5X16 | 4 |
14 | 44830KTED12 | CABLE COMP., SPEEDOMETER | 1 |
