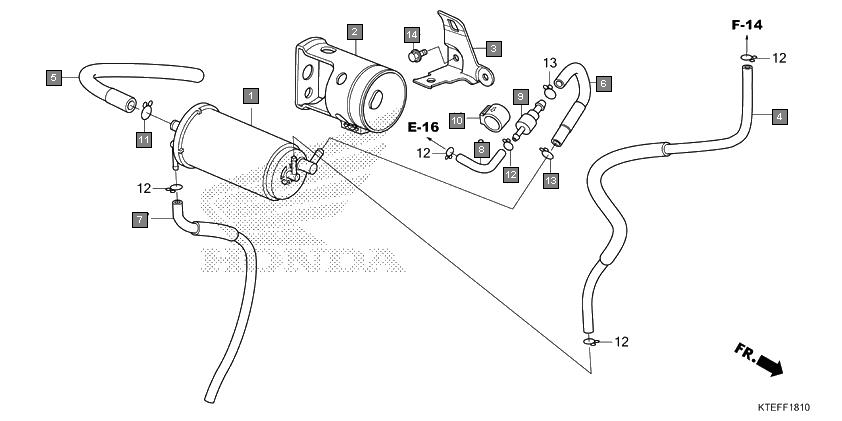

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17310KTED81 | CANISTER COMP. | 1 |
2 | 17311KTED00 | RUBBER, CANISTER | 1 |
3 | 17315KTED00 | STAY, CANISTER | 1 |
4 | 17411KTED00 | TUBE, CHARGE | 1 |
5 | 17412KTED00 | TUBE, AIR | 1 |
6 | 17413KTED00 | TUBE, CANISTER PURGE | 1 |
7 | 17414KTED00 | TUBE, DRAIN | 1 |
8 | 17415KTED00 | TUBE, CANISTER PURGE | 1 |
9 | 17440K43901 | VALVE, ONE WAY | 1 |
10 | 17441K43900 | RUBBER, ONE WAY VALVE | 1 |
11 | 90652MB1000 | CLIP, TUBE | 1 |
12 | 9500202089 | CLIP, TUBE(B8) | 5 |
13 | 9500202139 | CLIP, TUBE(B12.5) | 2 |
14 | 957010601200 | BOLT, FLANGE, 6X12 | 2 |
