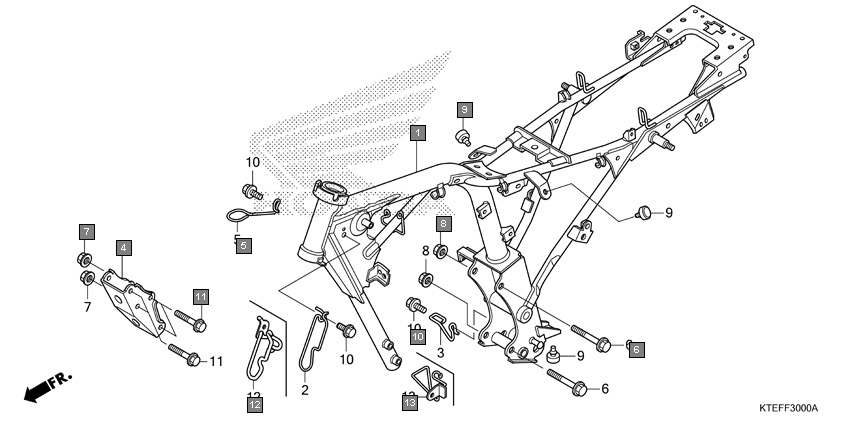

Motorcycles CB Shine CBF125J/K Frame Frame body
Ref.No. Part No. Description Oty
1 50100KTED80 BODY COMP., FRAME 1
2 50100KTEDB0 BODY COMP., FRAME 1
3 50100KTEDA0 BODY COMP., FRAME 1
4 50351KTE910 PLATE, FR. ENGINE HANGER 1
5 50721KTED00 GUIDE, CLUTCH CABLE 1
6 90019399010 BOLT, FLANGE, 10X110 2
7 9405008000 NUT, FLANGE, 8MM 4
8 9405010000 NUT, FLANGE, 10MM 2
9 9501162000 RUBBER B, STAND STOPPER 3
10 957010601200 BOLT, FLANGE, 6X12 3
11 958010808500 BOLT, FLANGE, 8X85 4
12 50187KTED00 GUIDE, MAIN HARNES 1
13 50296KTED00 GUIDE, DRAIN HOSE 1
