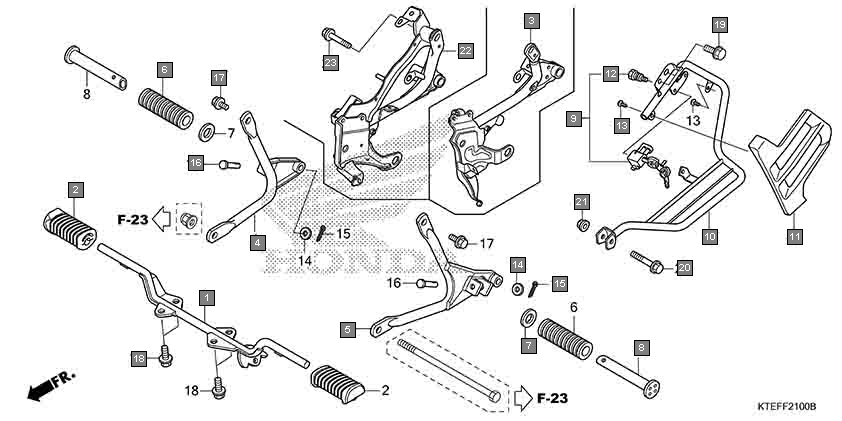

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50610KTED20 | BAR COMP., STEP | 1 |
2 | 50610KTED00 | BAR COMP., STEP | 1 |
3 | 50660KTED00 | RUBBER, STEP | 2 |
4 | 50701KTED20 | BRACKET COMP., R. PILLION STEP | 1 |
5 | 50701KTE910 | BRACKET COMP., R. PILLION STEP | 1 |
6 | 50702KTE910 | BRACKET COMP., L. PILLION STEP | 1 |
7 | 50710KTE910 | RUBBER, PILLION STEP | 2 |
8 | 50712405000 | WASHER, PILLION STEP | 2 |
9 | 50715405000 | BAR, PILLION STEP | 2 |
10 | 50730K14900 | HOLDER SET, HELMET | 1 |
11 | 51103KTED80 | GUARD A, SARI | 1 |
12 | 51104K14900 | GUARD B, SARI | 1 |
13 | 90107449000 | BOLT, HELMET HOLDER SETTING | 1 |
14 | 9390335220 | SCREW, TAPPING, 5X12 | 2 |
15 | 9410106000 | WASHER, PLAIN, 6MM | 2 |
16 | 9420116120 | PIN, SPLIT, 1.6X12 | 2 |
17 | 90131KWPF00 | PIN, PILLION STEP | 2 |
18 | 957010801600 | BOLT, FLANGE, 8X16 | 1 |
19 | 957010801600 | BOLT, FLANGE, 8X16 | 2 |
20 | 957010802000 | BOLT, FLANGE, 8X20 | 4 |
21 | 957010802007 | BOLT, FLANGE, 8X20 | 2 |
22 | 957010803500 | BOLT, FLANGE, 8X35 | 1 |
23 | 9405008000 | NUT, FLANGE, 8MM | 1 |
24 | 50701KTEDB0 | BRACKET COMP., R. PILLION STEP | 1 |
25 | 957010804500 | BOLT, FLANGE, 8X45 | 1 |
